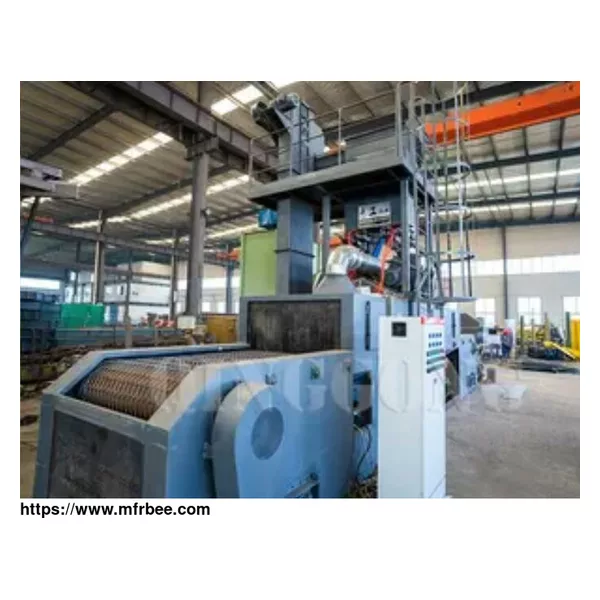

MESH BELT SHOT BLASTING MACHINE

Wire mesh shot blasting machine or conveyor belt shot blasting machines is suitable for continuous blasting thin and collision-sensitive die castings, pressure castings, ferrous and non-ferrous castings, forgings, automotive accessories, and weldments. Workpiece weight ranging from 1kg to 100kg. A highly wear-resistant wire mesh belt, with tension adjustment, provides the part transport. Wire mesh belt width has 600mm, 800mm, 1000mm and 1200mm.

Mesh Belt Shot Blasting Machine Basic Specification

MACHINE TYPE QGM-600 QGM-800 QGM-1000 QGM-1250 QGM-1500

Max. workpiece dimension Ø x b (mm) 600x400 800x400 1000x400 1250x400 1500x400

wheels Number x power(kW) 4x11 4x11 4x11 4x15 4x15

Alternative wheels Number x power(kW) 4x15 4x15 4x15 6x7.5 6x11

Foundation pit no no no yes yes

Working Process of the Belt Type Shot Blasting Machine

Treated objects are placed on horizontal network conveyor going through the steel customized mesh belt shot blasting machine. In the process of shot blasting the treated objects move through jets of shot blasting agent from turbines, which are installed at different angles with regard to the direction of the movement which provides efficient treatment.

The belt shot blasting machine's housing is protected by wear-resistant manganese steel. High efficiency of the wire mesh shot blasting machine is enabled by the system for continued returning and cleaning of the shot blasting agent, along with efficient shot blasting turbines made from wear-resistant materials. The wire mesh belt shot blasting machine's size, number, and power of shot blasting turbines, length of network rail conveyor on the treated object's loading and unloading site, the capacity of the conveyor and frequency regulation of turbine's revolutions are done in accordance with the needs and specifications of the buyer.

Mesh Belt Shot Blasting Machine Advantage

1. The mesh belt shot blast machine provides a frequency controlled speed variable mesh belt surface on which a variety of parts can be uniformly blasted. The high-quality mesh belt ensures that the workpiece remains in the perfect position to be blasted. As each part is blasted in a controlled fashion this technology is perfect for thin-walled parts.

2. The mesh belt of blasting is of high wear resistance, it can use 8-9 years.

3. The blasting machine shell is made of 10mm high-quality carbon steel plate by laser cutting and precision bending. The shell is welded by the special fixture to ensure the parallelism of the two sides of the blasting machine shell and the concentricity of the hole.

4. Mesh conveyor belt shot blasting machines with cartridge filter dust collector, meet European environmental requirements.

Mesh Belt Shot Blasting Machine Applications

Mesh belt shot blasting machine is one of the shot blasting machines for continuous wire with very high production efficiency. It can be used for deburring and rust removal of castings, hear treated parts, auto parts, aluminum parts, welding parts, mechanical parts, gears, aluminum templates, formwork and other workpieces.

Features of Mesh Belt Shot Blasting Machine

1. PLC control, manual and automatic dual-mode operation, save labor cost

2. Automatic detection, fault alarm, extended service time.x

3. without foundation pit

4. Can work continuously for 24 hours

5. Can be used alone or in conjunction with other equipment

Components of Mesh Belt Type Shot Blasting Machine

1. transport system -- wire mesh belt (metal belt)

① Made of wear-resistant manganese steel, solid solution tempering treatment, the residual stress inside the manganese steel is eliminated, the hardness of the manganese steel wire is reduced, its toughness and plasticity are improved, and the service life is extended.

② Frequency ccontrol, adjust the speed according to the shot blasting needs.

③ The tightening mechanism can be adjusted at any time

2. high efficiency blast wheel

① Various power options available, 7.5kw-30kw

② High chromium wear-resistant cast iron guard plate fully covers the blast wheel, extending the service life.

③ Precision processing of shot blasting machine spare parts can more than triple the service life of cast products.

④ Solidwork design, simulates the projectile pattern, and ensures that the steel shot covers all surface of workpieces

3. shot blasting room

① 10-12mm thick rolled Mn13 protective plate, which can ensure the use of the chamber for ten years

② The welded structure of the guard plate does not need to be removed if it is damaged, just weld it directly.

③ 6-8 layers of natural rubber sheets in inlet and outlet of chamber, prevent steelshot from splashing

④ Shot blasting room and rear/front blasting chamber overall delivery

4. electric control system

①SIEMENS/ OMRON PLC, auto/ manual model

②Fault detection and emergency stop

③Schneider electric elements, meet IP65 standard

QINGGONG MACHINERY supplies a variety of shot blasting machines to meet your different needs. According to the industry, different types of shot blasting machines can be chosen from. To learn more, you may see the “Industry” applications. Click “Buy Shot Blasting Machine” to get more information about our shot blasting machine products.
