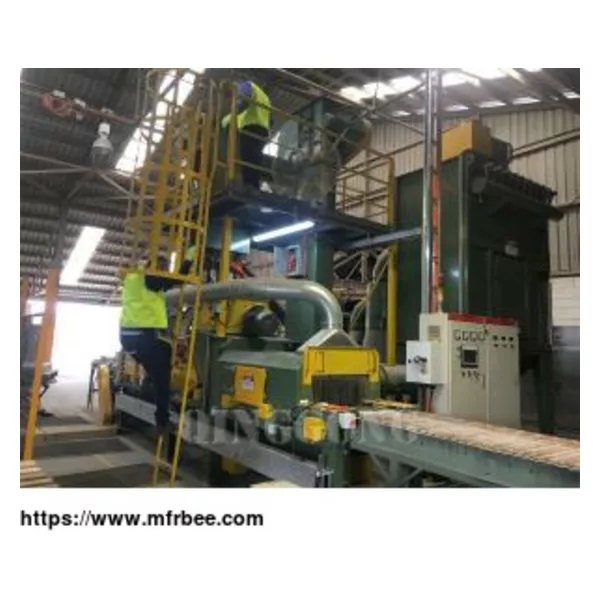

PAVERS SHOT BLASTING MACHINE

Paver concrete blocks shot blasting machine is mainly used for surface roughening treatment of marbles, granites, concrete products, and natural stone. It includes stone shot blasting machine and marble shot blasting machine. It provides twin advantage foremost subject field end provides outstanding appearance as a result of the rough surface and therefore the exposed aggregates. Second "roughened" surface has excellent non-slip properties.

Pavers Shot Blasting Machine Basic Specification
QGS Series Roller Conveyor Type for Pavers Length ≥60cm
Machine Model QGS600 QGS800 QGS1000 QGS1200 QGS1500
Max. working width of machine(mm) 600 800 1000 1200 1500
Max. working height of machine(mm) 400 400 400 400 400
Working speed(frequency adjustable) m/min 0.5~6 0.5~6 0.5~6 0.5~6 0.5~6
number of wheels×power(kw) 2×7.5/11/15 2×7.5/11/15 2×7.5/11/15 2×7.5/11/15 2×7.5/11/15
Vertical wheel optional 1×7.5/11/15 1×7.5/11/15 1×7.5/11/15 1×7.5/11/15 1×7.5/11/15
Foundation pit required No No No No No

QGP Series Rubber belt Type for Pavers Length ≤60cm
Machine Model QGP600 QGP800 QGP1000 QGP1200 QGP1500
Max. working width of machine(mm) 600 800 1000 1200 1500
Max. working height of machine(mm) 400 400 400 400 400
Working speed(frequency adjustable) m/min 0.5~6 0.5~6 0.5~6 0.5~6 0.5~6
number of wheels×power(kw) 2×7.5/11/15 2×7.5/11/15 2×7.5/11/15 2×7.5/11/15 2×7.5/11/15
Vertical wheel optional 1×7.5/11/15 1×7.5/11/15 1×7.5/11/15 1×7.5/11/15 1×7.5/11/15
Foundation pit required No No No No No

The working principle of the Qinggong Machinery paver shot blasting machine:
Paver Shot Blasting Machine is predominantly used to blast marbles, granites, concrete blocks to create an improved aesthetic appearance, taking out cement and making styling attributes such as granite chips visible. The working principle: different sized abrasive, thrown by the rapidly rotating blast wheel, is accelerated towards the surface being prepared. The huge impact force of the abrasive quickly etches a unique three-dimensional character of the surface. The products processed in this way have a high-quality surface appearance without overlapped and dead zone, it also has high production efficiency and low cost. Comparison with the old power blader and singeing process method, it has higher efficiency and lower cost, and if connected to our dust collector, the dust and contaminants will be recycled automatically at a very low dust emission level, which complies with EU environmental standards.

The concrete blockone blast machine can be integrated into a production line due to its modern control system with the relevant interfaces, different belt lengths and well-coordinated transfer stations (e.g. sheets or rollers).

Advantage of paver shot blasting machine:
Speed adjustment of conveyor and blast wheels is controlled through an Inverter.

The number and the position of the blast wheels can change depending on the geometry, customer requirement and on the workpieces, such as only the blasting of the upper side, or need to blast lateral side.

With proper regulated control and type of shot used in the shot blast machine, it is possible to produce different surface finishes to produce an "antique" effect on marble stones and ‘bush-hammering's effect on cement products.

All shot blasted paver blocks with Blow-off station. After blasting, a blow-off station with a high-pressure blower removes the shot from the surface of the concrete blocksone. The nozzles are adjustable in height and therefore adaptable for the treatment of different concrete blockone sizes.

As a shot blasting manufacturer, we will do our best to meet all the needs of customers.
