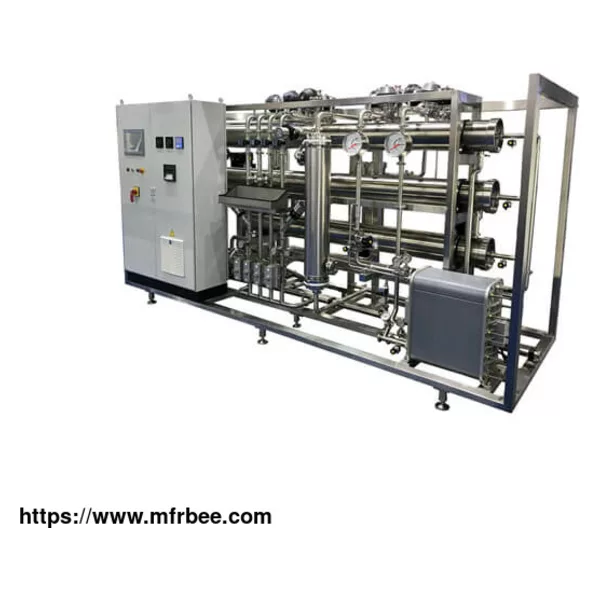

RO PLANT WITH EDI

The combination of reverse osmosis and EDI has overcome the deficiency that reverse osmosis effluent cannot be deeply desalted, and further removed trace carbon dioxide, residual salt, silicon dioxide, boron and total organic carbon plasma in RO water, greatly improving the quality of purified water.

It is widely used in biotechnology, pharmacy and other industries that must generally comply with USP, EP，JP and ChP regulations.

Specification of RO Plant With EDI

Water Inflow Requirements

TEA（Containing CO2） <25mg/L as CaCO3

Hardness <1mg/L as CaCO3

TOC <0.5mg/L

Temperature 5-43℃

PH 5-9

Silicon <0.5mg/L

Free Chlorine <0.05mg/L

Water inlet pressure 30-100psi

Fe,Mn,H2S <0.01mg/L

Rate of recovery 90-95%

HOW DOES edi in ro plant WORKS？

How Does ro edi plant With EDI Works？

The reverse osmosis device with EDI (reverse osmosis electrodeionization) is the most preferred purified water preparation technology in the pharmaceutical, food and biotechnology industries. It is basically a combination of reverse osmosis and electrodeionization processes. In reverse osmosis EDI system, single-stage or two-stage reverse osmosis is used to pre desalinate EDI feed water, and then deeply electrodeionize RO production water through EDI to finally produce high-purity water required for application.

For more information about ro edi water treatment and purified water system pharmaceutical, please feel free to contact us!
