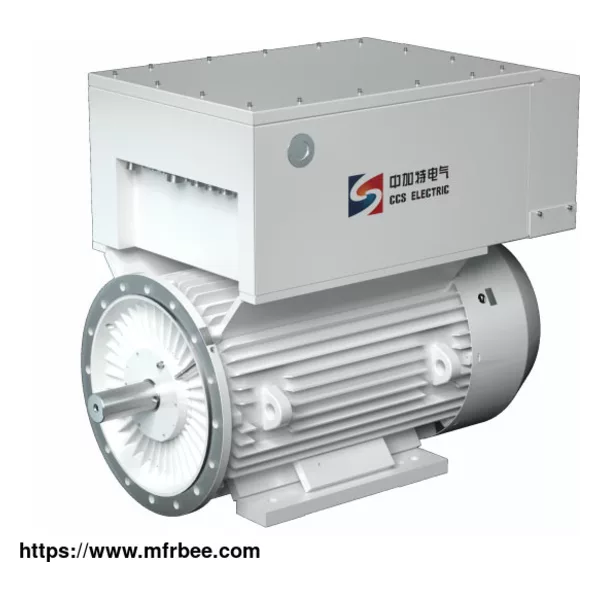

CCS Motor High Ingress Protection VFD Motor

High ingress protection of motor is mainly used in excavators in the field of construction machinery, port bucket wheel stacker-reclaimer, and electric drive fracturing complete sets of equipment matched with fracturing skids and sand mixers in oil well sites. Our power control equipments company's series of products have AC and DC, of which AC power supply units adopt AC power supply and adopt integrated design, with small volume, compact structure, saving installation space, high efficiency and energy saving, and are mainly used in construction machinery, ports and other fields; DC power supply products adopt DC power supply, inverter part, and motor part are combined into a whole, with high protection level. This kind of VFD compatible motor is mainly used in oil well sites and other fields.

Specifications of the High Ingress Protection VFD Motor

Model Power（kW） Voltage（V） Current（A） Speed（r/min） Insulation Ingress

protection

YKVFT-450-6 400 600 450 580 H IP44

YKVFT-450-6 500 600 565 690 H IP44

YKVFT-630-6 1200 600 1337 580 H IP44

YVFT-500-6 1500 600 1750 750 H IP44

YKVFT-355-4 315 600 354 2200 H IP54

YKVFT-315M-4 110 380 200 1485 H IP44

YVFT-315M-4 132 380 260 1490 H IP44

YKVFT-315L2-4 200 380 355 1490 H IP54

YKVFT-315L3-4 280 380 500 1480 H IP54

YKVFT-355L-4 315 380 600 1800 H IP54

YKVFT-450-6 400 450 807 1000 H IP44

Features of the High Ingress Protection VFD Motor

Optional AC or DC power supply

Compact structure for space saving

High VFD motor efficiency and energy saving

High protection

Application of the High Ingress Protection VFD in Motor

Applications on electric frac spread for oil &gas and contruction equipment such as excavators,bucket wheel stacker.

CCS Motors company is committed to significant technologies and efficiency-enhancing innovations, we are today the world market leader and define the new transmission modes by our CCS motors for various industries, Mining, Oil &Gas, Cement, Port, Steel Plants, Power Plants, Offshore platform, Construction machinery, vessel and so on.
