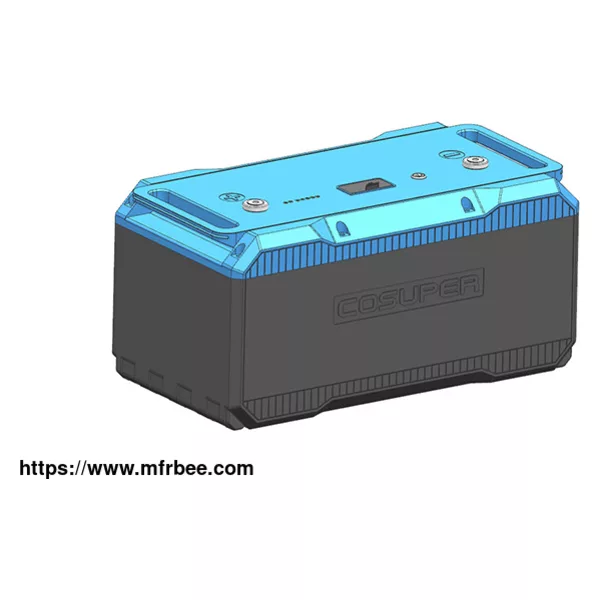

25.6V 100AH LITHIUM IRON PHOSPHATE BATTERY
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Compared with lead-acid batteries, lithium ion phosphate batteries have the advantages of long cycle life, safety and stability and low self-discharge rate. The 100AH lithium phosphate battery can
be widely used for many applications.
Cosuper’s W-L series 25.6V100Ah LiFePO4 battery has been well designed and developed to provide a reliable, longer life and high power solution for 24V systems, making it ideal for use in House
ESS, Communication Station, Commericial back up power and more.
FEATURES OF 25.6V 100AH LITHIUM IRON PHOSPHATE BATTERY
High number of charge/discharge cycles(@>3600 cycles; @80% DOD, @0.5C)
Multi Protection: Short circuit, Low volt / High volt, Over-charge / Over discharge, Over temperature
Built-in intelligent battery management system supports CANBUS communication
Completely sealed design ensures no harmful gas escapes during use
It is a kind of solar 100ah lithium phosphate battery that has a wide operating temperature range(-20℃~50℃)
With high thermal stability of the material, it will not cause explosion or combustion due to overcharge, short circuit, impact or excessive temperature
The high thermal stability of the material ensures no explosion or burn due to overcharge, short circuit, shock or high temperature
TECHNICAL SPECIFICATIONS OF 25.6V 100AH LITHIUM IRON PHOSPHATE BATTERY
Models W24-100SL
Rated Voltage 25.6V(22.8~23.8V)
Rated Capacity 100Ah
Min. Capacity@0.2C 100Ah
Rated Energy 2560Wh
Output Efficiency >99%
Energy Rentention ≥90%
Cell Capacity Difference ≤1%
Discharge
Discharge Current 0~100A
Over Discharge Protect 110A
Surge-current Protect 110A(<10ms)
Low-volt Shut Down 21.6V
Low-volt Recovery 23.2V
Output Short Circuit ≥330A/500us;
Charge
Suggested Charge Current 20~50A
Max. Charge Current 50A
Over-charge Alarm/Cut-off 60A/70A
Suggested Charge/Voltage 27.2~28.8V
Over-charge Protect 29.2V
Over-charge Recovery 27.2V
Temperature
Discharge Temperature -20~50℃
Charge Temperature 0~50℃
Storage Temperature -20~45℃
BMS Over-temp Shut Down 60℃
Mechanical
Dimension（mm)(L*W*H) 242*200*177.8
Weight(kg) 24±1
Battery Cell Aluminum LFP Cube
As one of lithium iron phosphate battery manufacturers, we will do our best to meet all the needs of customers.
Now the inverter price is reasonable, anything you need, please leave us a message.
