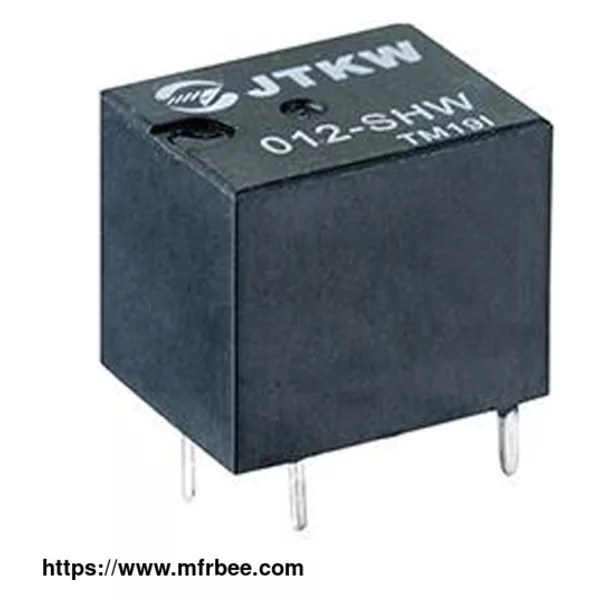

Standard Automotive Relay JTKW

Standard universal auto relay JTKW

Contact arrangement 1A, 1B, 1C Dielectric strength4) 500VAC

Voltage drop(initial)1) Typ.: 50mV(at 10A)

Max.: 250mV(at 10A) Operate time Max.: 10ms (at nomi. vol.)

Max. continuous current2) 35A(at 23°C, 10min)

25A(at 23°C, 1h) Release time5) Max.: 5ms

Max. switching current3) NO: 35A

NC: 20A Shock resistance6) 98m/s²

Max. switching voltage 16VDC Vibration resistance6) 10Hz to 55Hz 1.5mm DA

Min. contact load 1A 6VDC Ambient temperature -40°C to 85°C

Electrical endurance See "CONTACT DATA" Termination PCB

Mechanical endurance 1 x107 ops(300ops/min) Unit weight Approx. 6g

Initial insulation resistance 100MQ(at 500VDC) Construction Plastic sealed, Flux proofed

The JTKW relay is a type of standard universal automotive relay that is commonly used in a variety of applications, including lighting, power windows, door locks, and other automotive systems. It is designed to handle moderate to high current levels and is known for its reliability and long lifespan.

Standard Automotive universal car relay Features

01

The JTKW relay is typically controlled by a low-power signal, such as a switch or a controller. When the signal is applied to the relay coil, it generates a magnetic field that pulls the contacts together, completing the circuit and allowing current to fl

02

The JTKW relay is known for its high reliability and long lifespan, thanks to its durable construction and high-quality components. Its sealed and weather-resistant design helps to protect against moisture and dust, reducing the risk of failure in harsh e.

If you are looking for a reliable relay manufacturer, don't hesitate to contact us!
