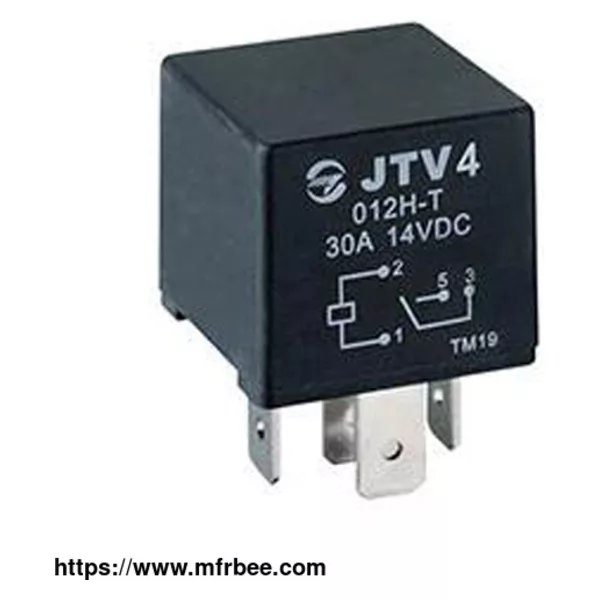

Standard Automotive Relay JTV4

Standard 50 amp automotive relay JTV4

Contact arrangement 1A, 1C Operate time10) Max.: 7ms (at nomi. vol.)

Voltage drop(initial) NO: Typ.: 20mV, Max: 250mV(at 10A)

NC: Typ.: 30mV, Max: 250mV(at 10A) Release time10) max.: 5ms4)

Max. continuous current2) NO: 60A(at 23°C)

NC: 40A(at 23°C) Ambient temperature -40°C to 125°C

Max. switching current3) Make(NO): 150A2)

Break(NO): 40A(Resistive, 13.5VDC) Vibration resistance6) 5Hz to 22.3Hz 10mm DA

22.3Hz to 500Hz 98m/s²

Max. switching voltage See "Load limit curve" Shock resistance5)10) 294m/s²

Min. contact load 1A 6VDC Flammability6) UL94-HB or better(meets FMVSS302)

Electrical endurance See "CONTACT DATA" Termination QC7)

Mechanical endurance 1 x106 ops(300ops/min) Construction Plastic sealed, Dust protected

Initial insulation resistance 100MΩ (at 500VDC) Unit weight Approx. 35g

Dielectric strength3) between contacts: 500VAC

between coil & contacts: 500VAC

The JTV4 50 amp relay is designed to handle moderate to high current levels, making it suitable for a wide range of automotive applications. Its sealed and weather-resistant design helps to protect against moisture and dust, reducing the risk of failure in harsh environmental conditions.

Standard 50a automotive relay JTV4 Features

01

Coil Power Consumption: 1.6W to 2.0W

02

Operating Temperature: -40°C to +125°C

03

Dimensions: 32.3mm x 26.3mm x 24.8mm.

If you are looking for a reliable relay factory, don't hesitate to contact us!
