Standard Automotive Relay JTV7

Minimum Order
10000
Packaging
Master carton, pallet
Delivery
12 WEEKS

Standard Automotive Relay JTV7
Contact arrangement 1A Operate time10) Typ: 6ms (at nomi. vol.)
Max.: 10ms (at nomi. vol.)
Voltage drop(initial) Typ.: 30mV(at 10A)
Max.: 250mV(at 10A) Release time10) Typ.: 4ms
Max.: 7ms
Max. continuous current1)10) 70A(at 23°C); 50A(at 85°C) Ambient temperature -40C to 125°C
Max. switching current10) 70A Vibration resistance6) 10Hz to 55Hz 3mm DA
55Hz to 500Hz 100m/s²
Max. switching voltage 50VDC Shock resistance5)10) 294m/s²
Min. contact load 1A 6VDC Flammability6) UL94-HB or better(meetsFMvss 302)
Electrical endurance See "CONTACT DATA" Termination QC11), PCB7)
Mechanical endurance 1 x107 ops(300ops/min) Construction Plastic sealed, Dust protected
Initial insulation resistance 100MΩ (at 500VDC) Unit weight Approx. 38g
Dielectric strength3) 500VAC Mechanical data11) cover retention (pull&push): 200N min
terminal retention(pull&push): 100N min
terminal resistance to bending
(front&side): 10N min.9)

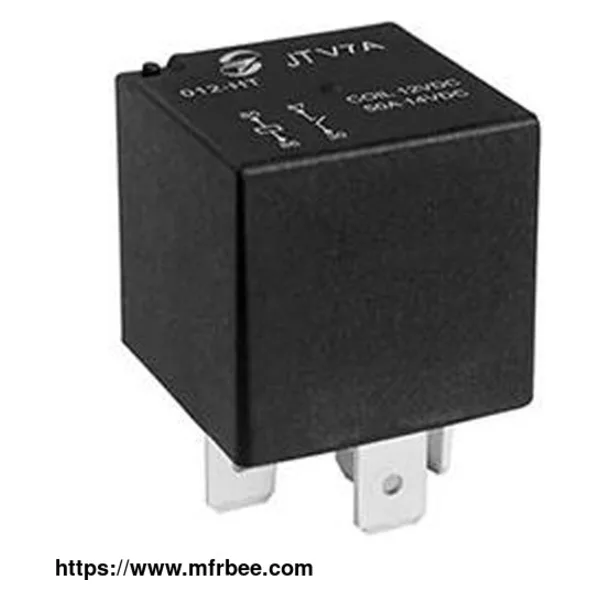

The JTV7 relay is designed to switch medium to high current levels, making it ideal for applications such as lighting, power windows, and other automotive systems. It features a sealed and weather-resistant design that protects against moisture and dust, reducing the risk of failure in harsh environmental conditions.

Standard 70 amp automotive relay JTV7 Features
01
Coil Power Consumption: 0.9W to 1.8W
02
Operating Temperature: -40°C to +85°C
03
Dimensions: 28mm x 23mm x 23mm.

For more information about relay in china, please feel free to contact us!
