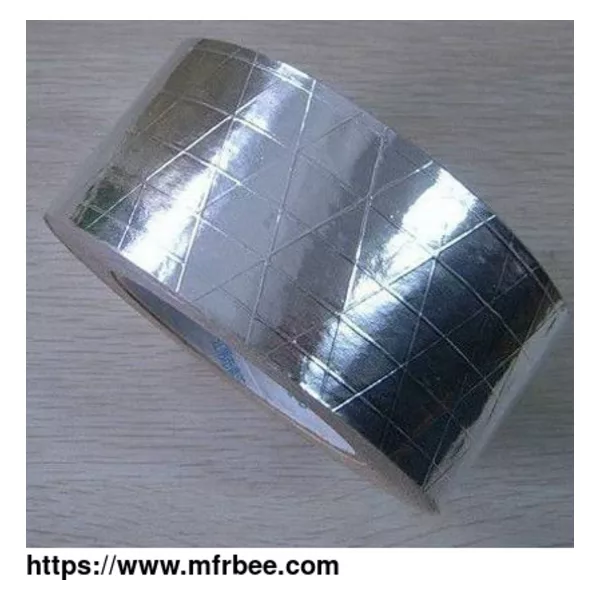

FSK tape is short name for foil scrim kraft tape. It is fire resistant, moisture barrier, very popular in thermal insulation industries. It is combination of aluminum foil, brown kraft paper,
fiberglass scrims. It can used for wrapping the air ducts and laminating the glass wool or rock wool thermal insulation, duct board joints applications. It is a cheaper solution compared to other
reinforced aluminum foil tape. Notably, it attaches well to rigid & flexible air ducts. Also, it is perfect vapor sealing for fiberglass facing joints. In addition, we have 2 way and 3 way
directional scrims foil. As a result, it can meet with your variable requirements.
FSK Tape Specifications
Product Characteristics Performance Data Test Method
Backing Thickness 120 microns (4.8 mil) PSTC-133/ASTM D3652
Backing + Adhesive 180 microns (7.2 mil) PSTC-133/ASTM D3652
Peel Adhesion 28 N/25mm (100.8 Oz/In) PSTC-101/ASTM D3330
Tensile Strength 150 N/25mm (34.1 Lb/In) PSTC-131/ASTM D3759
Elongation 1.00% PSTC-131/ASTM D3759
Service Temp. -20 ~ +80℃（-4 ~ +176 °F）
Operating Temp. 0 ~ +40℃（32 ~ +105 °F）
Features of FSK Tape
4.8 mil (120 micron) 3 directional foil scrim kraft backing
Coated with aggressive synthetic rubber resin adhesive
Strong adhesion fit for sealing joints/seams of foil/scrim facing
Good at moisture or air penetration resistance
Good aging resistance for both indoor & outdoor use
Heat and light deflection
Provide an effective barrier to moisture, vapor, air and corrosion
Conform well to contours and irregular surfaces and bonds to most substrates
Can be cleanly and easily removed from most surfaces, without any residue
Process of FSK Tape Production
NO.1
First, we weave the PE fiber mesh into 2 way directional or 3 way directional patterns. Then, layer the lightweight aluminum foil onto the fiberglass scrims.
NO.2
Second, we laminate a layer of brown kraft paper on the aluminum and fiber scrims.
NO.3
Third, we coat with very high bond natural rubber or synthetic rubber, hot melt adhesive on the basing material by our glue coating lines.
NO.4
Finally, we use our lathe slitting machines to cut the jumbo rolls to different standard or nonstandard width and length of small rolls.
FAQ of FSK Tape
What is FSK tape used for?
FSK tape also called foil scrim kraft tape, is used for HVAC industry & pipe wrap insulation. Seal the seams & joints on the FSK faced duct boards. It acts a role of moisture barrier for glass wool
or rock wool panels.
01
What is FSK tape made of?
It is made of aluminum foil, kraft & fiberglass scrims.
02
What types of FSK tape do you have?
We have 2 way and 3 way directional FSK tape
03
What benefits of FSK tape?
Good at moisture or air penetration resistance.
For more information about adhesive tape, please feel free to contact us!
