HDMI Display Board
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Size: All size display
Resolution: All
Interface: HDMI
Type: TFT
Touch panel: Support
Customization: Support
HDMI is called High Definition Multimedia Interface, it is one kind of digitalization and voice transmitte interface. Zhunyi teachnology can match HDMI board with RGB, MIPI, LVDS, SPI interface TFT
LCD display according to customers' requirements. All of our HDMI LCD screen support HDMI. If you need customization, we can help you too.

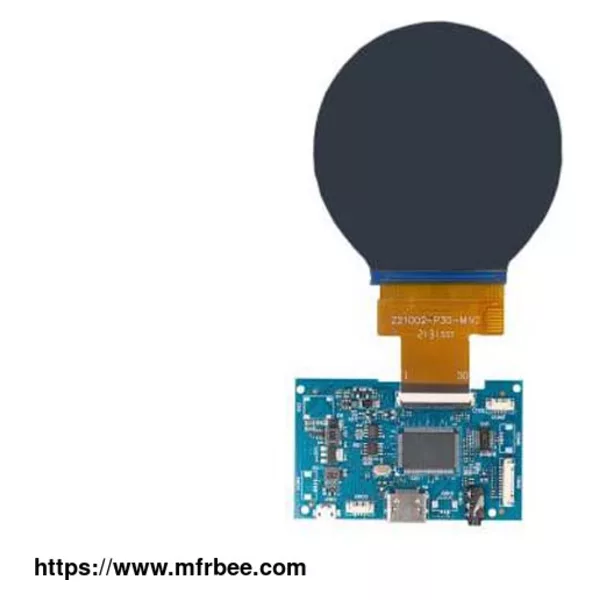

Zhunyi HDMI display screen, HDMI display panel compatible with several systems, raspberry pi, windows, linux and android. It is widely used in display test, industry controller, medical, video and
audio device, adversting, education and so on.
Size(inch) Resolution Model No. Outline Dimension(mm) Active Area(mm) View Angle Interface Luminance(nits) Touch Screen OP(℃)
2.1 480*480 Z21002HD 56.18*59.71*2.26 53.28*53.28 IPS HDMI 380 support -20℃~70℃
7 1024*600 Z70069HD 163.7*96.9 *2.59 154.21*85.92 IPS HDMI 500 support -20℃~70℃
10.1 800*1280 Z101020HD 143.1*228.6*2.6 135.36*216.58 IPS HDMI 300 support -20℃~70℃
As a leading China LCD display supplier, our TFT LCD widely apply in various fields, handheld device, POS, vending, smart home, industrial, medical, electronic vehicle.
