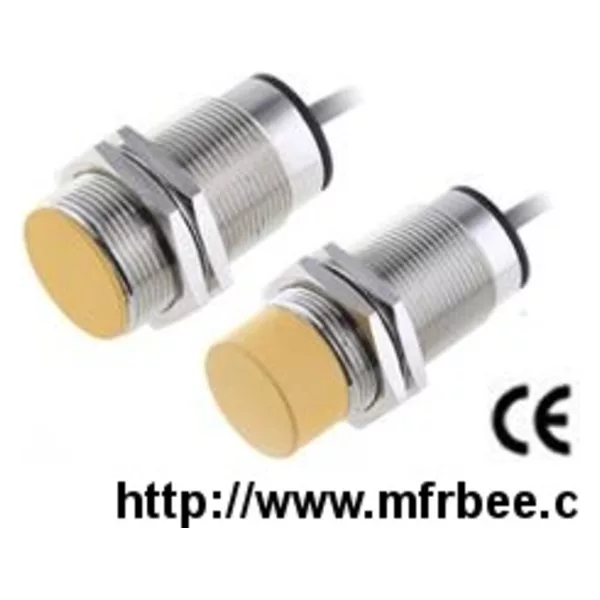

Extended Temperature Inductive Proximity SensorWL30HD
Product Quick Detail
- Packaging
- 12
- Delivery
- 15 Days
Specifications
Power supply AC 90-250V，DC 10-30V，DC 5V
Load current DC:200mA,AC:400mA
Residual voltage DC2 wire:≤6V AC 2wire≤10V DC 3/4 wire ≤2.5V
Consumption current DC≤15mA,AC≤1.7mA
Detect object 30×30×1 A3 iron
Repeat accuracy ≤3%
frequency DC3/4wire:500/300Hz DC2wire:300/200Hz AC:20Hz
Ambient temperature -40...70℃
Shell material Copper
Protection grade IP67
Temperature drift ≤±10%
Protection circuit Overloaded,short-circuit,reverse polarity
Indicator LED
Hysteresis 1...20%
Connection Silica Gel Cable 2m
Housing size M30×1×60 http://www.sensorsfactory.com/
Load current DC:200mA,AC:400mA
Residual voltage DC2 wire:≤6V AC 2wire≤10V DC 3/4 wire ≤2.5V
Consumption current DC≤15mA,AC≤1.7mA
Detect object 30×30×1 A3 iron
Repeat accuracy ≤3%
frequency DC3/4wire:500/300Hz DC2wire:300/200Hz AC:20Hz
Ambient temperature -40...70℃
Shell material Copper
Protection grade IP67
Temperature drift ≤±10%
Protection circuit Overloaded,short-circuit,reverse polarity
Indicator LED
Hysteresis 1...20%
Connection Silica Gel Cable 2m
Housing size M30×1×60 http://www.sensorsfactory.com/
