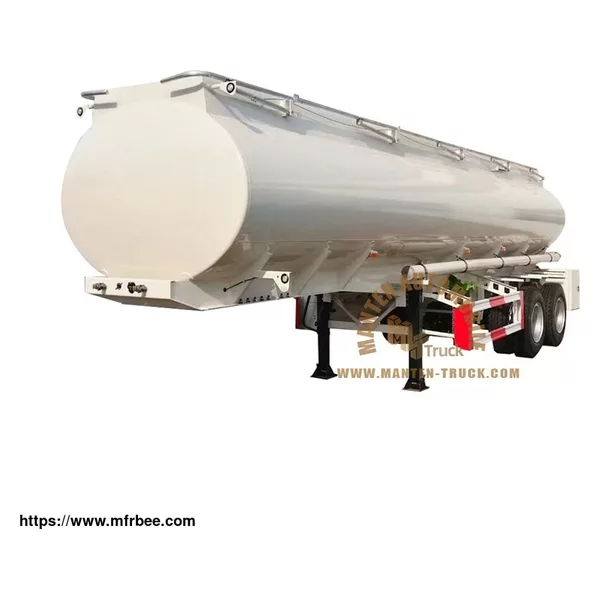

Fuel & Oil Tank Trailer

Manten Brand fuel storage tank trailer , the tank shape can be designed as square tank, elliptical tank, round tank or gooseneck tank according to customer requirements.

The material is made of carbon steel, stainless steel, aluminum alloy and other steel plates. The tank body can be divided into different warehouses, with multiple reinforced wave proof clapboards built in. The lower end of the clapboard is provided with through holes to reduce the impact of oil in the tank body during driving and improve the strength of the tank body.

The volume can reach 30 to 60 cubic meters. The axles can be 2, 3 or 4, support cusotmized as client request.

   

Specification Of Fuel & Oil Tank Trailer

SPECIFICATION

Tank Information

Tank Volume 30cbm/40cbm/45cbm/50cbm/55cbm/60cbm

Tank Material Carbon Steel/Stainless Steel/Aluminum Alloy Steel

Loading Medium Diesel/ Petroleum/ Gasoline/ Crude Oil/ Palm Oil,etc.

Tank Compartments 1/2/3/4/5/6/7/8/10/15/19

Manhole standard API Standard/ Regular Standard.

Trailer Specification

I Beam &Chassis Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 14mm,width 140mm; Middle Flange 6mm,Height 500mm, Bottom Flange 16mm,width 140mm.

Axle 2axle/ 3 axles / 4axle

BPW/ FUWA/ L1 13 ton

Suspension Heavy Duty Mechanical Suspension

Floor 3mm checker plate

Leaf Spring 10 piece Leaf spring

King Pin JOST brand 2” Bolt-in King Pin

Landing Gear JOST brand Two-speed, manual operating, heavy duty landing gear

Wheel Rim 8.25-22.5 wheel rim 13 pieces / 9pieces

Tire 11R22.5 tire with one spare tire. 13 pieces /9pieces

Spare Tire One set of spare tire including a carrier

Braking System WABCO RE 4 relay valve; T30/30+T30 Spring brake chamber; 40L air tanks

Painting Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Accessories One standard tool box

Fuel Tanker Trailer Manufacturers

1. The longitudinal butt welding is adopted for the tank body panel, and 13m large butt welding equipment can reduce the number of butt welding welds as much as possible. 13m can wrapping equipment is adopted for tank body forming, which changes the traditional tank car forming mode, and the overall straightness of the tank body is better. The tank body is welded with special tank tooling fixtures and automatic protective welding machine. The application of special equipment can effectively ensure the overall quality of the tank body.

2. Complete safety devices: equipped with explosion-proof devices and explosion-proof manholes; Installation of emergency cut-off bottom valve (submarine valve); Install the breather valve; The tank top is equipped with protective device; The electrical system adopts waterproof connector, which has higher overall safety.

3. The structural parts of the walking mechanism of the gasoline fuel trailer, gasoline tank trailer are subject to the sand blasting pretreatment process; The axle and suspension system are of international famous brands. Suitable for various road conditions.

We can provide kinds of oil trailer for sale, and the fuel tank trailer prices are affordable, anything you need, please contact us.

As a truck producer, we will do our best to meet all the needs of customers.
