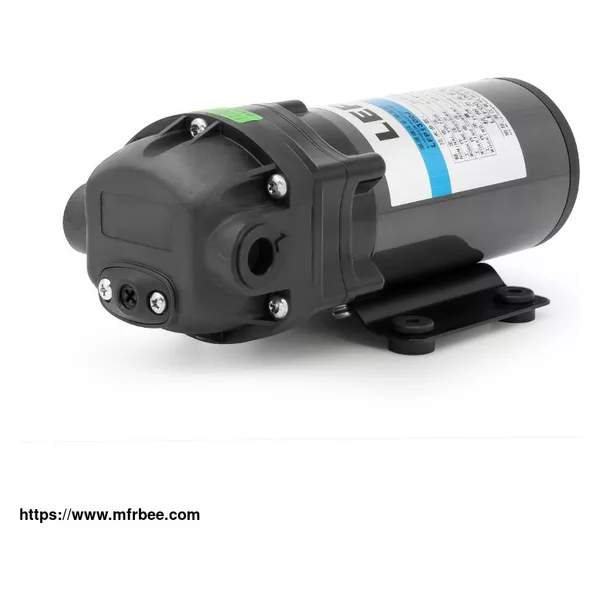

Lefoo RO Booster Pump 300 GPD

Lefoo RO Booster Pump 300 GPD

The RO pump of LEFOO is a new generation of Pressure Booster Pumps for water purifiers with production rates up to 300 gallons per day (47.3 liters per hour). Stable pressure feedings of 70 PSI with workflow ≧2700ml/min. Low current ≧2.4 A which saves 30% energy cost. This pump is super quiet when installed in water purifiers and other reverse osmosis systems. Durable quality from high-quality parts, low noise because of shock absorb base, save electricity power due to the excellent circuit design, increase the production rates of pure water while reducing the rejection water rate. CE RoHS approved, LEFOO is your reliable partner in micro pumping technologies.

Specification of RO Booster Pump 300 GPD

Model LFP1300J LFP1300JD LFP1300W-P LFP1300W LFP1300JD-A LFP1300W-A LFP1300W-A-P

Voltage DC24V

Inlet Pressure 0.2Mpa

Working Pressure 0.5Mpa

Working Current ≦2.3A ≦2.4A ≦2.1A

Working Flow ≧2700ml/min ≧2200ml/min

Open Flow ≧4000ml/min ≧3500ml/min ≧3000ml/min

Bypass Pressure 0.8~1.0Mpa

Maximum Current ≦3.2A ≦2.8A

Optional Connection 3/8" Male Quick Connector 3/8"NPT

3/8"NPT 3/8"NPT "0"

3/8"NPT "0" 3/8"Side Female Quick Connector

3/8"Side Female Quick Connector 3/8"Top Female Quick Connector

3/8"Top Female Quick Connector

Certifications NSF, CE, ROHS, REACH, EU Food Grade

Features of RO Booster Pump 300 GPD

*High water preventing level.

*Compliant with CE, Rohs, CQC certifications.

*Large flux water outlets with stable pressure and long working life.

*Compact structure consists of robust plastic and metal components.

*DC Powered strong impetus motor with low noise, low vibration level.

*Whole process quality controls in processes of electrical, sealing, and pressure boosting.

Applications of RO Booster Pump 300 GPD

RO diaphragm booster pump 300 GPD are generally used in The pump also can be used in Drinking water chillers; Drinking water coolers; Carbonated Drink Machine; Beverage machine; Reverse osmosis system; medical water purifier; Laboratory water purifier

Carbonation beverage for restaurant,

Espresso Coffee Machine

Water Dispensing and vending

Hydroponics VS Aeroponics

Misting Systems for home

Kitchen/Room Sanitation

Autoclave Systems

Endoscope Reprocessing

Methanol & Water Injection

Humidification System

HVAC system Cleaning

Biopharmaceutical Water

Chemical Boost/Dialysis Chemical Injection

Water Treatment/RO

Carbonation Systems

Beverage/Coffee Systems

Water Vending, Dispensing

Hydroponics/Aeroponics

Misting Systems

Surface Sanitation

Humidification

HVAC Coil Cleaning

Medical Lab Water

Autoclave Systems

Endoscope Reprocessing/Chemical Boost

Dialysis Chemical Injection

Methanol & Water Injection

Sparkling Water Machine

Commercial Sparkling Water Machine

Commercial Carbonated Water Machine

Carbonation Systems

Commercial Water Dispenser

Water Dispensers

Soda Machine

RO Purifier

RO Water Dispenser

Water Coolers

Misting System

Teeth Cleaning Industry
