3 Way Switching Valve

3 Way Switching Valve

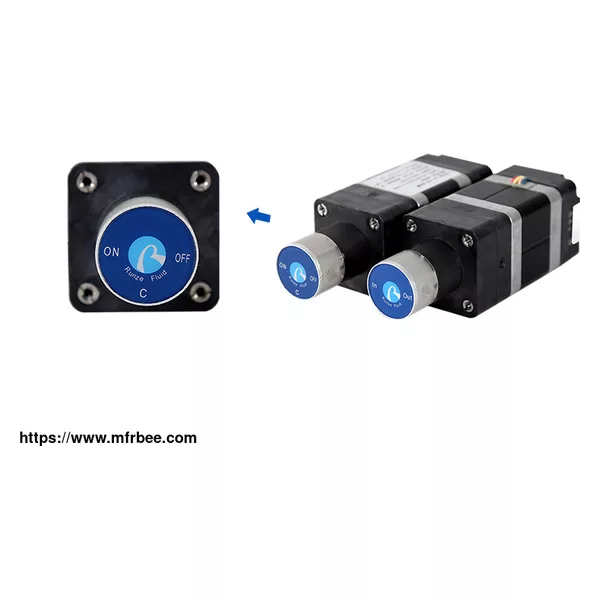

The three way switching valve was driven by a stepper motor to switch the inside rotor to a specific port, but it is was triggered by DC7-33V voltage signals to power on and off just like common solenoid valves. Regarding this high pressure water solenoid valve, we have 2 way, 3 way, 4-way valves available, all these models anti maximum pressure to 1.6Mpa which can be used in special pressure systems. Runze is a professional switching valve manufacturer and supplier, we are able to offer various fluid control equipment. If you want to know more, please contact us now!

Specification of High Pressure 3 Way Solenoid Valve

Orifice 1.5mm

Wetted material PCTFE, Sapphire

Valve model M01 M02 M03 M04 M05

Port-to-port 52.93ul 50.68ul 52.93ul 101.35ul 51.32ul

Dead volume 13.83ul 11.66ul 13.83ul 23.31ul 12.22ul

Port configuration 2/3/4 port

Air pressure 0-1.0Mpa

Water pressure 0-1.2Mpa

Liquid temperature 0℃-80℃

Connection 1/4-28UNF

Replaceable parts Stator replaceable, rotor sealed irreplaceable

Driver Non-optional

Valve drive ≤530ms (response time)

Trigger signal DC7-33V

Feedback input signal 3.3-24V high low level output

Max. current 2.0A

Power supply DC24V/1.0A

Max power 48W

Operating temperature 0℃--50℃

Operating humidity <70% relative humidity, non-condensing

Dimension (L*W*H) 42*42*113mm

Net weight 0.487KG

Port Description

DC24V (+) DC24V positive

DC24V (-) DC24V negative

V-Tin (DC7~33V+) External trigger voltage (DC7~33V)

DC7~33V GND (-) GND

AGND External reference voltage GND (-)

OUT1 Output level 1

OUT2 Output level 2

Vref External reference input voltage (+)
