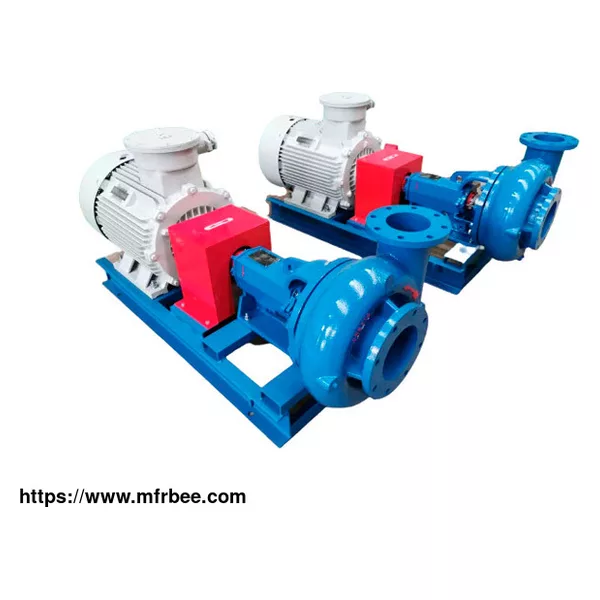

CHINA CENTRIFUGAL SAND PUMPS

JDSB Series China Centrifugal Sand Pump contains almost all the features of JSB series pump. It has more compact design and are suitable for hydraulic motor drives. These features make the JDSB series pumps ideal for applications such as oil field fracturing trucks as well as mixing and pump charging for water well drilling applications. All parts of these China centrifugal sand pumps are the same as the JDSB series pumps except the frame and shaft. The frame and shaft have been shortened by 4" to reduce the length of the pump. When space is limited and prime mover options are limited, the JDSB series pumps are the pump of choice.

JXP Series Hight Volume Heavy Duty Sand Slurry Master Pump working principle is that under the action of the motor, pump's impeller rotates at a high speed, the clear liquid is drawn into the suction tube. After the drilling fluid has flowed through pipette and get enough energy and speed under the action of centrifugal force, Drilling fluid is continuously discharged out of the pump.

FEATURES OF CHINA CENTRIFUGAL SAND PUMP

1. Open impeller, suitable for conveying high viscosity drilling fluid;

2. Combined seal, long service life;

3. Universal bearing seat and bearing are adopted to facilitate maintenance and reduce costs;

4. The main components are made of wear-resistant ductile iron, which has a long service life.

CHINA CENTRIFUGAL SAND PUMP

We are proud to offer some of the most reliable, durable, and high-performing china centrifugal sand pumps on the market. Our centrifugal sand pumps are built to last and are designed to efficiently handle abrasive and high-pressure fluids. With the latest technology and high-quality materials, we stand behind each of our sand pumps with confidence. Apart from the excellent performance, our sand pumps are also versatile, customizable, and cost-effective. Each pump is constructed to provide easy maintenance, robustness, vibration-resistant features and is corrosion-resistant, ensuring that the unit is efficient and long-lasting. Choose from our range of centrifugal sand pumps and experience the difference. Want to explore the capabilities of a China single stage centrifugal pump? Get in touch with All Pumps Machinery and find out more about its details.

SPECIFICATION OF JDSB SERIES CHINA CENTRIFUGAL SAND PUMP

Model JDSB10×8×14 JDSB8×6×14 JDSB8×6×11 JDSB6×5×14 JDSB6×5×11 JDSB5×4×14 JDSB4×3×13 JDSB3×2×13

Discharge capacity 260～300 m3/h 240～260 m3/h 220～240 m3/h 200～220 m3/h 120～200 m3/h 80～120 m3/h 60～80 m3/h 50～60m3/h

Pump Head 28~33 28～33m 24～28m 24～28m 24～28m 24～28m 22～28m 22～28m

Efficiency 65% 65% 65% 65% 65% 65% 65% 65%

Motor power 75/90 kW 55/75 kW 37/45 kW 37/45/55 kW 30/37/45 kW 18.5/22/30 kW 11/15 kW 7.5/11 kW

Motor speed 1450/1750rpm 1450/1750rpm 1450/1750rpm 1450/1750rpm 1450/1750rpm 1450/1750rpm 1450/1750rpm 1450/1750rpm

Inlet diameter 10″ 8″ 8″ 6″ 6″ 5″ 4″ 3″

Outlet diameter 8″ 6″ 6″ 5″ 5″ 4″ 3″ 2″

Outlet

diameter 8″ 6″ 6″ 5″ 5″ 4″ 3″ 2″

Weight 1060/1140kg 840/1035kg 700/755kg 665/720/795kg 620/655/715kg 525/535/615kg 435/450kg 365/420kg

Overall

dimension 2007×701×950 1927×655×880 1855×648×850 1823×585×850 1762×522×814 1731×514×814 1531×495×674 1388×482×609

/2065×701×1015 /1993×680×950 /1880×648×850 /1848×585×850 /1822×585×850 /1731×514×814 /1571×495×674 /1513×482×674

/1902×600×880 /1847×585×850 /1643×502×714

SPECIFICATION OF JXP SERIES HIGHT VOLUME HEAVY DUTY SAND SLURRY MASTER PUMP

Pump Connection Size 6"- 14" (150mm - 350mm)

Max. Pump Flowrate 1703m3/h (7500 GPM or 473L/S)

Max. Pump Head 125m (410 feet)

Motor Power Range 151HP to 500HP

Speed Range 1000 to 1400rpm

Bawei, as an excellent industrial pumps company, offers a wide range of centrifugal slurry pump for you to choose from.
