Structural features of rubber-lined slurry pumps

Rubber pump, AHR slurry pump, corrosion-resistant slurry pump generally means that the lining of the slurry pump is made of rubber. From the lining material of the slurry pump, it can be divided into rubber lining and metal lining (high chromium). The rubber pump is a slurry pump whose lining is made of natural rubber.

ShijiazhuangPansto Pump Industry Co., Ltd.mainly designs, manufactures and sells slurry pumps, slurry pump accessories, mud pumps, submersible slurry pumps, foam pumps and other industrial pump series. Quality Assurance! The prices and parameters of slurry pumps and mud pumps from ShijiazhuangPansto Pump Industry Co., Ltd, wear-resistant metal and wear-resistant rubber. There is a big difference in properties between rubber linings and metal linings. Rubber linings are generally better than metal linings (high chromium) in terms of corrosion resistance, but their abrasion resistance is not very good. The lining of metal high-chromium alloy generally has good wear resistance. Therefore, when choosing a slurry pump, the lining material must be selected based on the customer's industrial and mining conditions and the composition of the slurry being transported.

Generally, for alloys of nickel, molybdenum and other minerals that are not very abrasive, you can choose a rubber-lined slurry pump; for iron ore, gold ore and other highly abrasive slurries, you can choose a metal-lined slurry pump.

Rubber lined slurry pump rubber pump rubber slurry pump first recommendedPansto Pump slurry pump industry

Rubber lined slurry pump, rubber lined slurry pump price, rubber pump parameter description:

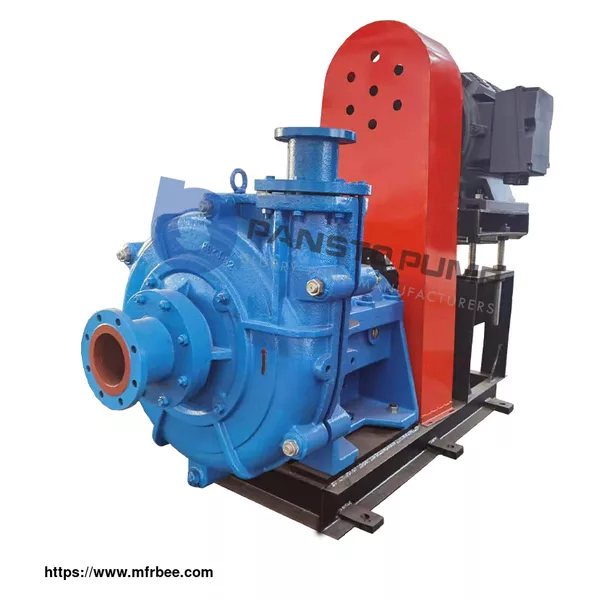

Structure of rubber-lined slurry pump: AHR type rubber-lined slurry pump is a cantilever, horizontal double-shell axial suction centrifugal slurry pump. The outlet position of the pump can be rotated at eight different angles at 45°C intervals for installation and use.

Rubber slurry pump material: The pump body of the AHR rubber-lined slurry pump has a replaceable rubber lining, and the impeller, guard plate, and front and rear sheaths are all made of wear-resistant and corrosion-resistant rubber.

Use of glue pump: AHR glue pump is suitable for transporting small particle size, non-sharp particles and high concentration slurry, and can also transport corrosive slurry.

Sealing forms of rubber-lined slurry pumps: packing seal, auxiliary impeller seal, packing plus auxiliary impeller seal, mechanical seal, etc.

Transmission types of rubber-lined slurry pumps: DC direct drive, CR parallel belt drive, ZVZ upper and lower belt drive, CV vertical belt drive, etc.

The significance of rubber-lined slurry pump models: Examples are as follows: 6/4D-AHR

6: Suction diameter; 4: Discharge diameter; D: Bracket type; AH: Product series; R: Rubber lining

Rubber lined slurry pump accessories include: rubber slurry pump impeller, rubber slurry pump sheath, rubber slurry pump guard plate, rubber slurry pump shaft sleeve, rubber slurry pump has good anti-corrosion performance, long service life and sufficient inventory. Fast delivery, welcome to buy, the price is more favorable in large quantities!
