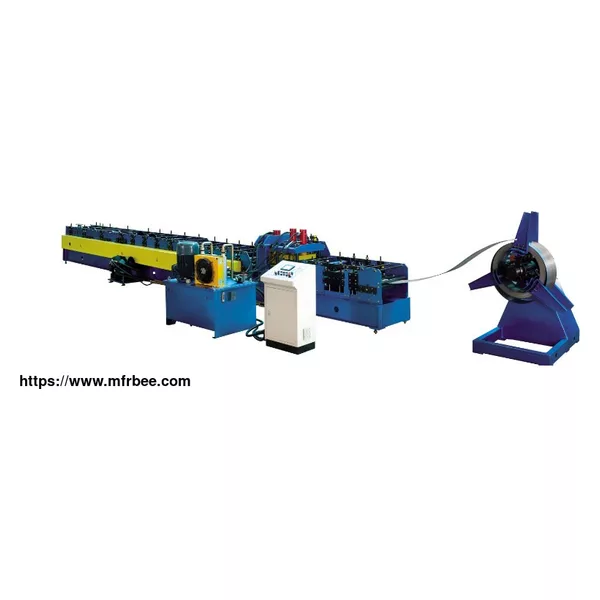

C/Z Purlin Roll Forming Machine
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
The c&z purlin forming machine can form hot/cold rolled metal strip through leveling, cold roll forming, punching and cutting off to produce C type or Z type purlin. Various specifications of
cz purlin can be produced by changing the spacers.
The technical flow process of c purlin forming machine : decoiling → feeding steel strip → sheet leveling → punching to length → cut to length → roll forming → run out table.
With 53 years' experience, Jinggong is specialized in manufacturing high-quality C Z purlin roll forming machine, feel free to contact!
Technical Parameter Of C/Z Purlin Roll Forming Machine
Item Parameter
Model HC-300 HZ-300
Profile C purline Z purline
Purline specification 80-300
Material Type Steel strip
Thickness 2.0-3.0
Yield strength 230-345
Forming speed 10-15
Roller material Bearing steel
Roller driven type Chain transmission
Controller PLC
Operation Touch screen and button
Hydraulic system pressure 20
Hydraulic station motor power 5.5
Main motor power 18.5
Total power 24
Total weight About 13000
Want to know more about roll forming machine for sale, contact us now.
