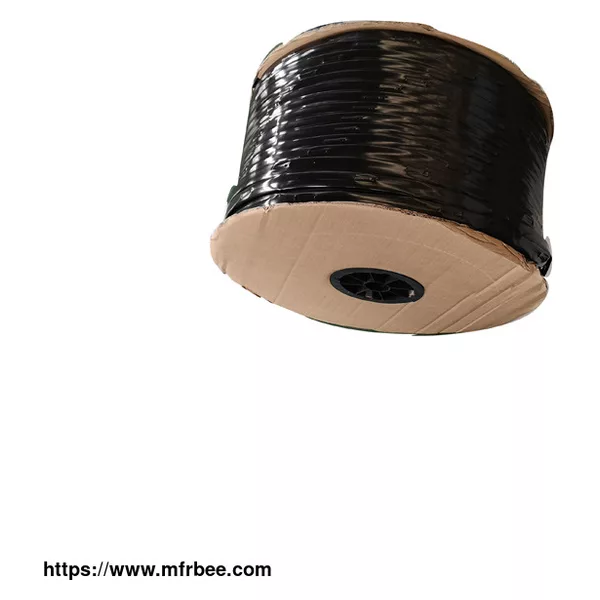

DRIP TAPE WITH FLAT DRIPPER

Flat dripper drip tape : flat drip tape uses plastic hose to send water to the roots of crops for local irrigation through drippers on a capillary with a diameter of about 16mm. It is through the dripper or flat drip irrigation hose that the outflow orifice is very small, and the water is dropped uniformly and slowly into the soil near the root of the crop.

The drippers are spaced as per client’s requirements.

The drip tapes are connected to main pipe(PVC layflat hose or PE layflat hose).

Filtration of water for drip tape

Plastic screen filter: well water

Plastic disc filter: ground water

Highly resistant to plugging

Made of virgin raw material, high strength and long durability

Easy installation and removal, saving on time and labor

Precision performance

Applications of Flat Drip Tape

Greenhouse: cucumber, strawberry, tomato, watermelon

Land cultivation: tobacco, ginseng, pepper, oil palm

Production standard: ISO 9261:2004

Specifications of Flat Drip Tape

Product Code Diameter WallThickness Spacing Flow Rate (L/H) Working

Pressure(M) Roll Length

SZSP0116018100 Dn 16mm 0.18mm 10cm 1.38;2.0;2.2; 2.7;3.0 0.1 2000m

SZSP0116018150 Dn 16mm 0.18mm 15cm 1.38;2.0;2.2; 2.7;3.0 0.1 2000m

SZSP0116018200 Dn 16mm 0.18mm 20cm 1.38;2.0;2.2; 2.7;3.0 0.1 2000m

SZSP0116018300 Dn 16mm 0.18mm 30cm 1.38;2.0;2.2; 2.7;3.0 0.1 2000m

SZSP0116020100 Dn 16mm 0.20mm 10cm 1.38;2.0;2.2; 2.7;3.0 0.1 2000m

SZSP0116020150 Dn 16mm 0.20mm 15cm 1.38;2.0;2.2; 2.7;3.0 0.1 2000m

SZSP0116020200 Dn 16mm 0.20mm 20cm 1.38;2.0;2.2; 2.7;3.0 0.1 2000m

SZSP0116020300 Dn 16mm 0.20mm 30cm 1.38;2.0;2.2; 2.7;3.0 0.1 2000m

SZSP0116025100 Dn 16mm 0.25mm 10cm 1.38;2.0;2.2; 2.7;3.0 0.1 2000m

SZSP0116025150 Dn 16mm 0.25mm 15cm 1.38;2.0;2.2; 2.7;3.0 0.1 2000m

SZSP0116025200 Dn 16mm 0.25mm 20cm 1.38;2.0;2.2; 2.7;3.0 0.1 2000m

SZSP0116025300 Dn 16mm 0.25mm 30cm 1.38;2.0;2.2; 2.7;3.0 0.1 2000m

SZSP0116030200 Dn 16mm 0.30mm 20cm 1.38;2.0;2.2; 2.7;3.0 0.1 1500m

SZSP0116030300 Dn 16mm 0.30mm 30cm 1.38;2.0;2.2; 2.7;3.0 0.1 1500m

SZSP0116030400 Dn 16mm 0.30mm 40cm 1.38;2.0;2.2; 2.7;3.0 0.1 1500m

SZSP0116040200 Dn 16mm 0.40mm 20cm 1.38;2.0;2.2; 2.7;3.0 0.1 1500m

SZSP0116040300 Dn 16mm 0.40mm 30cm 1.38;2.0;2.2; 2.7;3.0 0.1 1500m

SZSP0116040400 Dn 16mm 0.40mm 40cm 1.38;2.0;2.2; 2.7;3.0 0.1 1500m

SZSP0116050200 Dn 16mm 0.50mm 20cm 1.38;2.0;2.2; 2.7;3.0 0.1 1000m

SZSP0116050300 Dn 16mm 0.50mm 30cm 1.38;2.0;2.2; 2.7;3.0 0.1 1000m

SZSP0116050400 Dn 16mm 0.50mm 40cm 1.38;2.0;2.2; 2.7;3.0 0.1 1000m

Suzhou Seapeak Co., Ltd. is a leading drip irrigation system company, we provide drip irrigation adapter, flat drip irrigation pipe, dripping tape, flat drip pipe, drip tape 1000m and etc. Want to know more? Contact us.
