Dual 10-inch Line Array Series Speaker

Dual 10 Inch Line Array Speakers

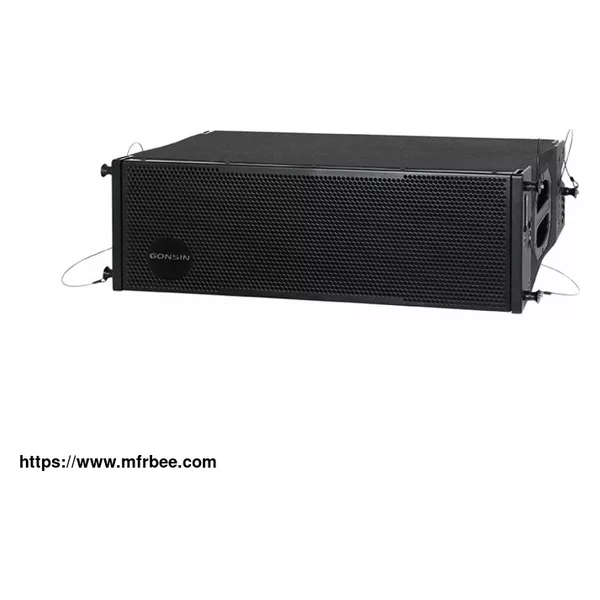

GX-SP2010DL-Z line array speaker is a medium-sized two-way crossover system, providing a bandwidth of 55Hz-20KHz. The box speaker array is fitted with two British top-level 34 mm voice coil HF drivers and two 10-inch LF drivers with stronger penetrating power and higher sound pressure level. The design is elaborate with superb appearance. GX-SP2018SSBC-Z is a subwoofer designed specifically for using with the GX-SP2010DL-Z line array speaker. The bass-reflex design makes the bass more abundant and powerful. With GX-SP2010DL-Z, it makes a high sound pressure level, clear sounds and a controllable full-range response range.

Technical Specifications of Dual 10-inch Line Array Series Speaker

Model GX-SP2010DL-Z GX-SP2018SSBC-Z

Impedance 16Ω 8Ω

Frequency range 50Hz~20KHz(-10dB) 38Hz~350Hz(-10dB)

MAX SPL 135dB(EIAJ) 128dB

Power(RMS) 500W/ 2000W(PEAK) 600W/ 2400W(PEAK)

Horizontal coverage angle 120° /

Vertical coverage angle 10° /

MID LF unit 2X12 Mid Low, 3"High power voice coil Ceramic alloy magnet, Waterproof paper cone 1*18"Subwoofer, 4" High power voice coil Ceramic alloy magnet, Waterproof paper cone

HF unit 2X1"Titanium film, Neodymium magnet, 1.75"tube /

Sensitivity(1m/1W) 101dB /

Hanger/Installation Hanger for line array, two handles 36mm stand holder, hanger for line array, two handles

Cabinet 18mm birch plywood, black spray paint, metal mesh

Signal connector Two parallel socket of SPEAKON

Product Dimensions(W*D*H) 900*450*285mm 1010*835*550mm

Package Dimensions(W*D*H) 1010*540*375mm 1010*790*613mm

Net weight 36.5Kg 45Kg

Gross weight 38.3Kg 53Kg

Now the price of line array speaker for sale is reasonable, if you have needs, please contact us.

As a conference system manufacturer, we have professional conference system china for sale, if you are interested, please contact us.
