Dual 12-inch Line Array Series Speaker

Dual 12-inch Line Array Series Speaker

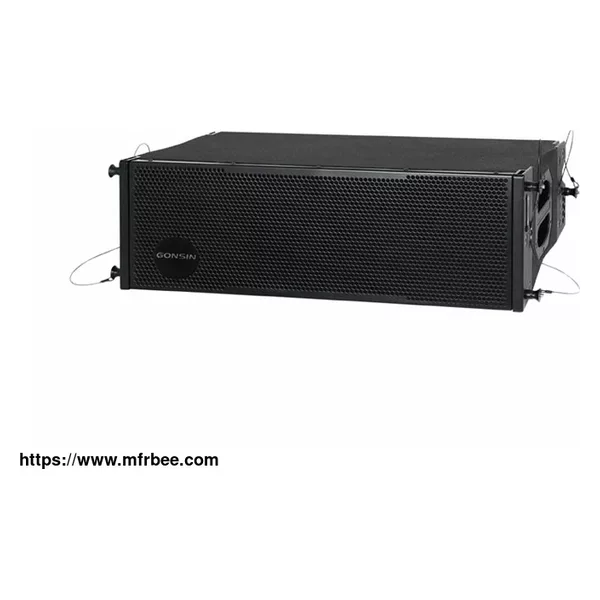

The GX-SP2012DL-Z box line array 12 inch is a large-scale two-way crossover system providing a bandwidth of 55Hz-20KHz. Our 12-inch line array speakers are fitted with two British top-level 44 mm voice coil HF drivers coupled to a special constant-path aluminum horn and two 12-inch LF drivers with great dynamic margins. It produces strong penetrating power, clear and thick vocals and super high sound pressure levels. The whole box speaker line array is beautiful and concise in shape, and exquisite in appearance, which is an extremely competitive large-scale line array system.

The GX-SP2018DSBB-Z box line array 12-inch speaker uses a custom-made speaker unit that is precisely modulated and the cabinet is a symmetrical compression design. It employs two 18" drivers in a symmetrically compressed enclosure, featuring extremely deep low frequency which has strong power and elasticity at the same time. Combined with GX-SP2012DL-Z, the box speaker line array 12-inch generates a large dynamic, high SPL, clear and delicate sound as well as a tunable full-range response range.

12 Inch Box Spekaer Line Array Features

1. A compact two-way passive, line array system, intended for use in arrays with fixed curvature.

2. This is a versatile loudspeaker system for medium & large indoor venues.

3. It is suitable in small and medium outdoor scale applications, or as a delay tower for large-scale sound reinforcement systems.

Box Speaker 12 Inch Line Array Technical Specifications

Model GX-SP2012DL-Z GX-SP2018DSBB-Z

Impedance 16Ω 4Ω

Frequency range 50Hz~20KHz(-10dB) 35Hz~350Hz(-10dB)

MAX SPL 137dB(EIAJ) 139dB

Power(RMS) 600W/ 2400W(PEAK) 1200W/ 4800W(PEAK)

Horizontal coverage angle 120° /

Vertical coverage angle 10° /

MID-LF unit 2*12 Mid Low, 2*18"Subwoofer

3"High power voice coil 4"High power voice coil

Ceramic alloy magnet, Ceramic alloy magnet

Waterproof paper cone Waterproof paper cone

HF unit 2*1"Titanium film, Neodymium magnet, 1.75"tube /

Sensitivity(1m/1W) 103dB /

Hanger/Installation Hanger for line array, two handles 36mm stand holder, hanger for line array, two handles

Cabinet 18mm birch plywood, black spray paint, metal mesh

Signal connector Two parallel socket of SPEAKON

Product Dimensions(W*D*H) 1010*520*350mm 1010*835*550mm

Net weight 46.5Kg 93Kg

Gross weight 49Kg 101.5Kg

As one of conference equipment suppliers, we have professional audio conference system china for sale, if you are interested, please contact us.
