Mixer
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications

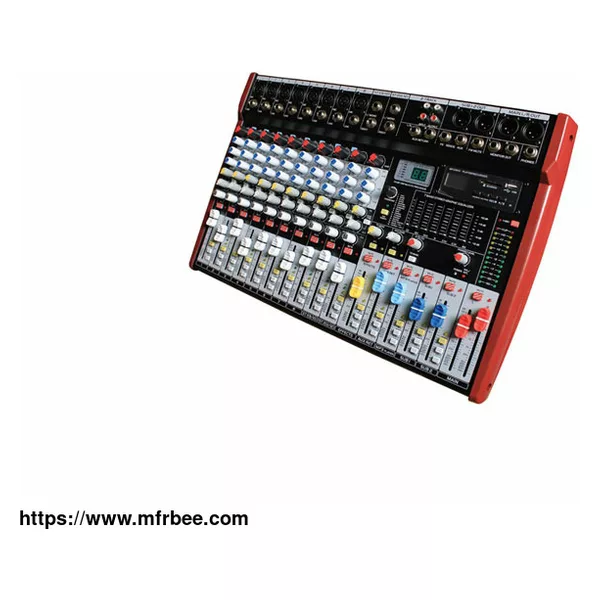

Features of GX-MX1012-Z/GX-MX1014-Z/GX-MX1016-Z/GX-MX1024-Z Audio Mixer China
With MP3 player
With high and low impedance switching function
With four-way marshalling function
Comes with reverse feed interface
Compact design, with cabinet mounting bracket (12/14 way) for cabinet installation
Comes with 99 modes of digital effector
60MM high-precision fader with dust-proof net
3-stage EQ with low cut filter and high efficiency
2 stereo AUX loopbacks with level control, and can send the signal to AUX1-2
Recorder input/output with separate switch, which distributes the signal to the control room and output
With high pass filter (low cut), cut-off point 75Hz-18dB/Oct
High-precision 12-segment output level indicator
With USB port, support computer recording and playback
Wide-voltage switching power supply design can meet the needs of global regions
Technical Specifications of GX-MX1012-Z/GX-MX1014-Z/GX-MX1016-Z/GX-MX1024-Z Power Mixer China
Product number GX-MX1012-Z GX-MX1014-Z GX-MX1016-Z GX-MX1024-Z
Input 4 balanced gold-plated MIC XLR/balanced linear inputs; 6 balanced gold-plated MIC XLR/balanced linear inputs; 8 balanced gold-plated MIC XLR/balanced linear inputs; 16 balanced gold-plated
MIC XLR/balanced linear inputs;
2 pairs of stereo 6.35mm linear input/balanced gold-plated XLR input; 2 pairs of stereo 6.35mm linear input/balanced gold-plated XLR input; 2 pairs of stereo 6.35mm linear input/balanced
gold-plated XLR input; 2 pairs of stereo 6.35mm linear input/balanced gold-plated XLR input;
2 pairs of unbalanced lotus mouths 2 pairs of unbalanced lotus mouths 2 pairs of unbalanced lotus mouths 2 pairs of unbalanced lotus mouths
XLR interface With 48V phantom power
Frequency Range 10Hz~55KHz
Total harmonic distortion <0.03% @+0dBu
Mono gain 0~50 dB (MIC), balanced
Stereo gain +15~-35 dBu
Noise -100 dBu
Sensitivity 15 dB±3dB
Crosstalk -90 dB@1 kHz
Equalizer (mono) Treble: +/-15 dB@12 kHz
Midrange: +/-15 dB@100Hz-3 kHz
Bass: +/-15 dB@80 Hz
Equalizer (stereo) Treble: +/-15 dB@12 kHz
Middle and high tone: +/-15 dB@3 kHz
Mid-bass: +/-15 dB@500Hz
Bass: +/-15 dB@80 Hz
DSP effects D/A converter: 24bit
Preset mode: 99
Maximum output level: +22 dBu
Maximum input level: +30 dBu, Gain @+10 dB
Input resistance Microphone: 2.6KΩ, balanced
Stereo: 20KΩ, balanced
Auxiliary: 20KΩ, balanced
Recording: 24KΩ, balanced
Output impedance Main output: 240Ω, balanced, 120Ω, unbalanced
Auxiliary: 120Ω, balanced
Recording: 1KΩ, balanced
Headphone: 25Ω, balanced
Power Supply 100-240 VAC, 50 Hz; 30W 100-240 VAC, 50 Hz; 40W
Dimension (D*W*H) 431*388*86mm 431*438*86mm 431*493*86mm 431*718*86mm
Net weight 4Kg 4.5Kg 6Kg 8Kg
There are many audio conference system manufacturers in China, but we are one of the best choices for you.
If you have needs to buy conference equipment, please contact us.
