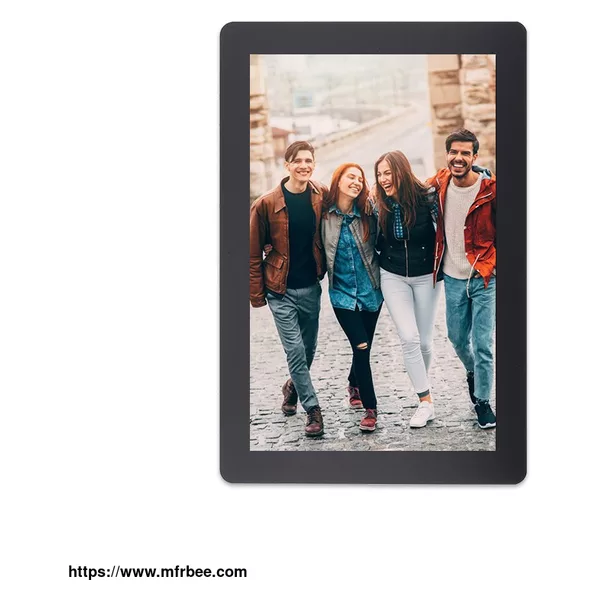

1200x1920 High Resolution 8 Inch Mipi IPS TFT Display
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Kingtech 8 inches 1200x1920 ips tft panel All/free/wide viewing angle TFT LCD display is one of our main products.
The 8 tft lcd module has a special resolution of 1200x1920, most customers use it for logistics devices. The 8inch IPS LCD screen has a TFT capacitive touchscreen and also can custom according to
customer requirements.
Kingtech Diaplay has achieved great progresses in the field of LCD production and promoises to provide the customers with qualified standard dispalys and satisfying one-stop services. Any requests
will be welcomed.
Features of 1200x1920 high resolution lcd display
1200x1920 resolution /High resolution
All / Free / Wide viewing angle
IPS type
MIPI 4 lane interface
Portrait / vertical display
Support capacitive touch
Specification of 1200x1920 High Resolution 8'' Mipi IPS TFT Display
Item 8 inch 1200x1920 TFT module display
Model No PV08004TD31C-C
Resolution 1200x1920
Outline Dimension 114.60*184.12*2.2mm
Active Area(mm) 107.64(H) *172.224(V)
Interface MIPI
Viewing Angle All
Display Mode IPS/Normally Black
Operating Temperature -0℃～ +50℃
Storage Temperature -20℃~60℃
Brightness 500nits
Touch panel Capacitive touch panel
Application of 1200x1920 High Resolution 8'' Mipi IPS TFT Display
The 8inch 1200x1920 IPS TFT LCD display can be used for medical devices, handheld equipment, industrial control, smart home, logistics device, and E-Bike.
For more information about lcd manufacturing and buy oem screen, please feel free to contact us!
