Panel Bender
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Panel Bender
As one of the panel bender manufacturers in China, Remcor panel bender for sale can realize automatic bending, compared with a traditional press brake, it is much more labor cnc panel bender cost
saving and higher efficiency. This automatic panel bender support the positive, and negative bending, any angles from 0-180 degree bending, folding, etc. Panel bender sheet metal coil line is
widely applied in steel furniture, electrical cabinet, etc.

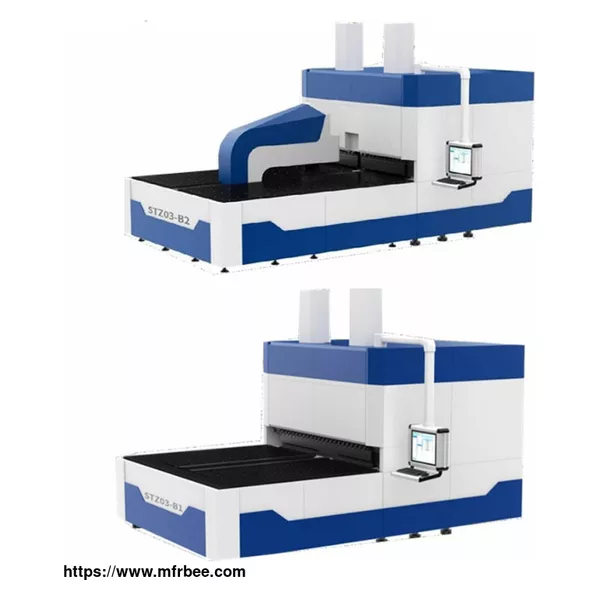

1. Panel Bending Machine Appearance
panel bending machine
2. Panel Bender Features
The intelligent flexible bending center is a high-tech product developed and produced for the sheet metal industry to improve production efficiency, reduce labor intensity, reduce labor costs, and
enhance corporate image. It has been widely used in various industries such as filing cabinets, electrical cabinets, door industry, tool cabinets, kitchen utensils, ventilation, air conditioning,
elevator industry, purification, education and experimental equipment.
panel bender for sale
High productivity. The fastest continuous bending speed can be 0.5S and can realize the automatic and continuous bending. The cycle time saving up to 60% compared to the die bending.
Flexible and high automatic processing. Flexible bending multiple sides, less re-tooling time. Labor cost saving at 4-5 times compared with traditional press brake.
Precise bending. The very first step manual positioning and imported servo motor control the bending process precisely.
Simple operation. Clear and simple windows, the operator can handle the bending process in a easier way.
3. Bending workpiece display
The intelligent bending center can realize complex shapes such as bending right angles, non-right angles, circular arcs, upper and lower pressing dead edges, etc., and is used in the metal forming
field of different workpieces in different industries; the equipment adopts all-electric servo motors instead of hydraulic drives, which is environmentally friendly, fast speed, high precision,
maintenance-free and other advantages.
4. Panel Bender Pressing Device and Bed
There are two types of casting parts and steel plate welding parts for the equipment body, which can meet the needs of different processes, products and users.
The cast fuselage frame undergoes precise finite element force analysis, adopts the most stable circular radial triangle interconnection design, and selects high-grade QT500-7 and HT250 or higher
castings after strict material analysis.
The welding fuselage is made of Q235 high-quality steel plate, which is welded on a special platform after advanced welding technology, which ensures the welding accuracy of the fuselage; This
greatly ensures the overall stability of the fuselage under high tonnage force.
Both fuselages are subjected to a high-temperature annealing process according to the temperature curve corresponding to the material and are subjected to large-scale.
The shot blasting machine is cleaned of sand, and the bed's surface is clean. Castings and welded parts are subjected to open-air aging treatment after rough machining. Thoroughly release the
internal stress before doing fine processing to ensure that it will not deform for a long time and ensure the stability of the complete accuracy.
5. Bending tool
The bending tool is made of 42CrMo forging material, which is made through strict roughing, finishing and other processes, as well as heat treatment, quenching and tempering, laser quenching and
other processes, ensuring the service life of the tool and bending requirements. Different straight knives, scimitars, large scimitars, upper and lower pressure knife avoidance, hinge knife
pneumatic, electric control and other knives can be designed and customized according to the user's workpiece, and auxiliary bending knives can also be installed for complex bending processes to
maximize to meet various bending needs.
6. Control system
The imported all-electric servo closed-loop control system is adopted. The handheld laser welding system supports up to 25 axes of concurrent linkage. In the true sense, the multi-axis is
concurrently linked, the bending action is smooth, and the mechanical operation is highly coordinated. It can connect different brands of manipulators and truss loading and unloading equipment
according to its own needs.
The programming software is easy to learn, intelligent operation, practical. The edited workpiece shape is displayed at any time, and the self-inspection system can predict whether the edited
program is correct in advance, avoiding the waste of workpieces and effectively protecting the equipment. In terms of function, it supports complex movements such as upper pressing dead edge, lower
pressing dead edge, and arc that cannot be formed at one time by traditional bending machines.
The control system has a cloud operation and maintenance management interface, which can use the mobile phone applet to monitor the operation status of the equipment anytime and anywhere,
understand the actual operation status of the equipment, and count the number of production workpieces in various periods.
FAQ of Panel Bender
1. What’s special advantages for Remcor panel bender
1. The cast Iron body, we adopt the most stable circular radial triangle interconnection design, and selects high-grade QT500-7 and HT250 or higher castings after strict material analysis. Castings
and welded parts are subjected to open-air aging treatment after rough machining to ensure the stability of the complete accuracy.
2. The co-developed system with global famous controlling system. which supports the complicated cloud operation and it’s user friendly especially for foreign operators, also we specially preserve
maintenance management interface, which can use the mobile phone applet to monitor the operation status of the equipment anytime and anywhere
3. Rich experience in machining designing and production for steel cabinet or steel furniture industry till now, we have successfully shipped to Europe, which wins high appreciations. And over 13
sets automatic lines in domestic for the leading furniture industry manufacture.
2. Can you offer the suitable proposals with quotation?
Yes sure, pls firstly share with us the below points so we can offer our quotation for reference.
1) Your material type and coil width.
2) Your material thicknesses
3) The drawings you would need to do
4) Your coil weights
3. Can I come to china to check with the machine capacity or where can I check with your machine?
Yes sure, we works as the professional laser machine distributor welcoming the global partners for vising us and also welcome to make an appoint with our manager for checking the machine in locally
As a laser machine supplier, we will do our best to meet all the needs of customers.
