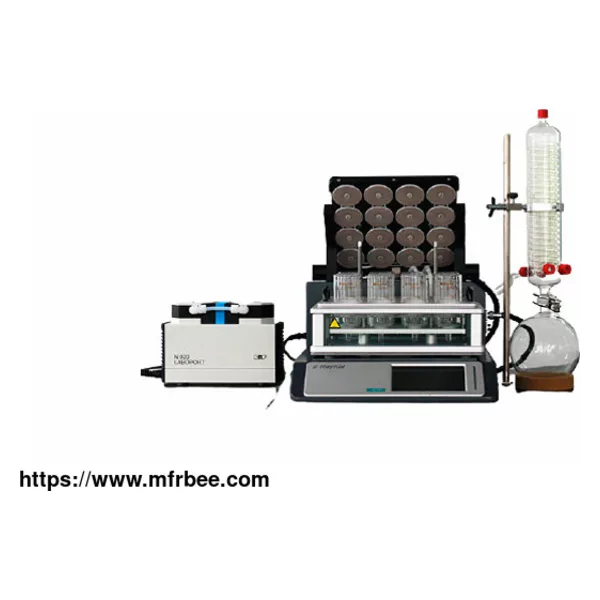

MPE AUTOMATED VACUUM PARALLEL EVAPORATOR

Raykol MPE High-throughput vacuum evaporator is a new automated evaporation system integrated the benefits of conventional rotary evaporation and high-throughput nitrogen evaporator. It adopts a precise digital vacuum control system based on uniform water bath heating, to ensure different samples under the same and consistent evaporating condition and avoid loss of the target compound under low vacuum, to maintain accuracy and reliability of analysis results.

FEATURES OF MPE AUTOMATED VACUUM PARALLEL EVAPORATOR

Simultanueous concentration to 16 samples

Highly efficient, minimal evaporation time

The high recovery rate of solvents

Transparent sink for clear observation

Compatible with various sample vials

Anti-boiling design to prevent analyte loss

SPECIFICATIONS OF MPE AUTOMATED VACUUM PARALLEL EVAPORATOR

Parameter Specification

Concentration Vacuum negative pressure, water bath heating and oscillation

Sample capacity 16, 36

Sample vials 65mL/260mL glass tube with stem; 70mL/320mL glass tube

Temperature range of water bath Room temperature to 80°C

Oscillation speed range 0 to 300rpm

Vacuum pump speed range 20 to 30L/min

Vacuum pump noise <60dB

Software interface 7-inch built-in touch screen

Dimension 67cm x 44cm x 34cm

Weight 57kg

Power supply 200 to 240V, 50/60Hz

Power rate 2000W

Fume hood/ventilation Required

Storage temperature 0 to 40°C

Storage humidity 20 to 85%

Operating temperature 10 to 40°C

Operating humidity 20 to 80%

RayKol Group is dedicated to research&development and manufacture of automated laboratory systems. With systematic framework and integrated development of RayKol own core automated lab systems technologies, combined features of robot and artificial intelligence and coordination of hardware and lab automation software, we provide a wide range of automated sample preparation systems, integrated systems and consumables for analytical laboratories and life science laboratories, centred on the fields of food safety, environment protection and life science. With the advantages of traditional techniques, RayKol's lab equipment and solutions of total lab automation system alleviate the workflow bottlenecks of manual sample preparation and process.
