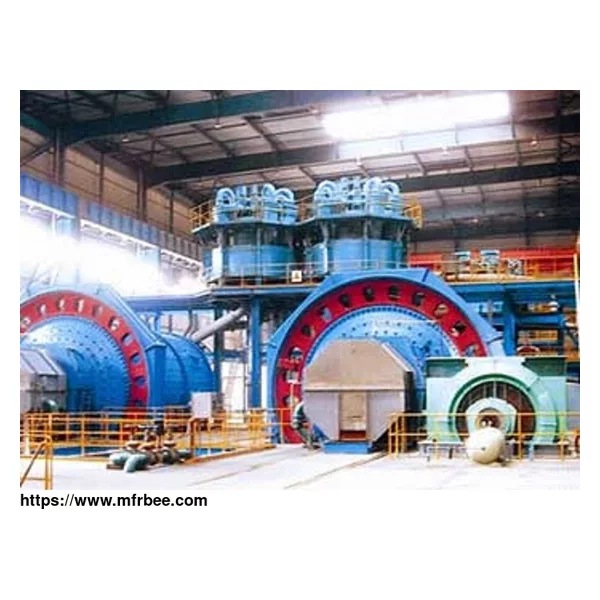

Dry Ball Mill

Dry ball mill is suitable for all kinds of metal and nonmetal ores, including materials that will react with water, such as cement, marble, and other building stones, or products that require storage and sales in the form of powder. In addition,among all ball grinding machine, if the concentrator is located in an arid area and water resources are scarce, dry grinding ball mill can be used for water saving.

Advantages of Dry Grinding Ball Mill

Dry ball mill need less water, which greatly saves water consumption compared with wet ball mill.

The material produced by dry ball mill is the finished product.

The efficiency of dry ball mill is higher.

Available for cement ball mill.

Working Principle of Dry Ball Mill

The dry grinding ball mill is a horizontal cylindrical rotating device, which is driven by outer gear. It is divided into lattice type dry ball mill and multi-bin type dry ball mill. The material enters into the front bin of the mill through the feeding device, and the hollow shaft screw evenly enters into the front bin of the mill. There are stepped lining plates or corrugated lining plates in the bin, which are filled with steel balls of different specifications. The rotation of the cylinder generates centrifugal force to bring the steel balls to a certain height and then fall down, which has a heavy impact and grinding effect on the material. After rough grinding in the front bin, the materials enter the second bin through a single-layer partition board. The bin is inlaid with a flat lining board and steel balls to further grind the materials. The powder is discharged through the discharging grate plate to complete the industrial grinding mill operation.

Main Structure of Dry Ball Mill

Feeding screw for feeding raw material.

The shell is equipped with a manhole for maintenance and replacement of the inner liner.

Discharge part for ball mill to discharge qualified products.

Main bearing.

Transmission part.

Operation and Maintenance of Dry Ball Mill

Before the ball mill is started, check whether the connecting bolts are tightened, including gears, couplings, etc. Check whether the oil tank and reducer have enough quantity; Whether the whole lubricating device and instrument are defective and whether the pipeline is smooth. Finally, check whether there are any sundries around the ball mill and classifier. Only if everything is clear can we get the ball mill to work.

Intelligent Grinding Expert System Ball Mill

To realize the intelligent control for ball mill operation, we provide the intelligent grinding expert system. It will monitor the situation of ball mill working and the finished products status. Lower the labour cost with great efficient.

Technical Parameters of Dry Ball Mill

Specification Capacity Rotary Speed Input Size Grinding Medium Load Volume Motor Profile Dimensions

(L×W×H) Total Weight Remarks

m t/h r/min mm t M3 Power/kw Voltage/V mm t

φ2.2×6.5 15-16 22 ＜20 22 18 320 6000 12.28×5.39×4.21 52

φ2.2×8 30 20.8 ＜25 45 560 6000 17.215×5.564×4.54 81

φ2.2×13 29-30 21.5 ＜25 60 43 630 6000 26.183×4.54×3.229 118.4

φ2.2×13 24-35 21.5 ＜25 60 43 630 6000 26.079×4.54×3.52 113

φ2.2×13 40 18.9 ＜25 65 50 800 6000 27.345×6.04×3.62 145

φ3×9 36-42 17.6 ＜25 70-80 1000 6000 23.285×5.965×3.878 136.6

φ3×11 60-65 17.4 ＜15 90-100 69 1250 6000 28.00×5.72×3.672 180

φ3.2×7+1.8 48-63 18 ＜20 55-58 44.5 1000 6000 24.7×5.12×4.23 167.5

φ3.4×7+1.8 54 16.9 ＜20 65 51.5 1000 6000 (22.057+a)×5.12×4.23 184.4 a is the length of the motor

φ3.4×7.5+1.8 ~60 16.9 ＜20 70 54.58 1250 6000 27.18×5.72×4.23 214-217.5

φ3.5×10 75 16.59 ＜20 80 64.6 1250 6000 25.382×5.802×4.83 270

φ3.5×9 90-95 16.5 ＜15 130 94 2000 6000 28.521×5.55×5.6 256.3

φ3.8×8.5+3.5 ~90 15.5 ＜20 100 89.4 1600 6000 32.504×6.77×6.03 305.6

φ4.8×8.5+3.5 150 15 ＜20 150 89.4 2800 21.739×6.99×9.00 310.7

φ4.6×10+3.5 190 15 ＜25 190 157 3550 23.599×6.96×4.63 352

φ4.6×9.5+3.5 185 15.2 ＜25 175-180 148 3550 6000 22.939×5.239×7.55 293

φ4.6×14 185-220 15 210 185 4200 23.2×11.934×6.37 310

As one of heavy equipment dealers, we will do our best to meet all the needs of clients.
