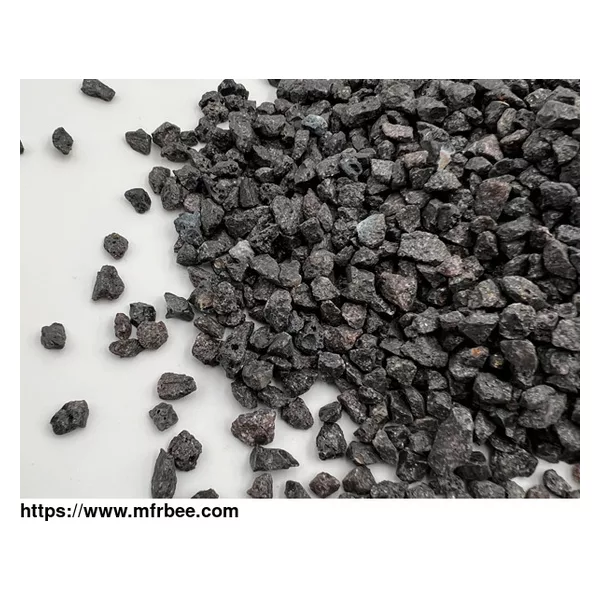

Brown Fused Alumina For Refractory

Brown fused alumina is made of high-quality bauxite, anthracite, and iron filings. It is cooled and smelted at a high temperature by more than 2000 degrees in an electric arc. It is crushed and shaped by a jaw crusher and a ball mill.

Description of Brown Fused Alumina for Refractory

Tilting Furnace (Turn-over Furnace) Barmac Crushed

Items Unit Index Typical

Chemical Composition Al2O3 % 95%min 95.56

SiO2 % 1.2max 0.91

Fe2O3 % 0.30max 0.09

TiO2 % 3.00max 2.55

Melting Point ℃ 2050

Refractoriness ℃ 1980

True Density g/cm3 3.90min

Mohs Hardness --- 9.00min

Refractory Grain Sizes mm 0-50, 0-1, 1-3, 3-5, 5-8

Fine Powder mesh -80, 100, 150, 200, 325F

Abrasives Grits FEPA 8, 14, 16, 20, 22,24, 30, 36, 40, 46, 60, 70, 80, 90, 100, 120, 150, 180, 220, 240

Fixed Furnace Barmac Crushed

Items Unit Index Typical

Chemical Composition Al2O3 % 95%min 95.23

SiO2 % 1.5max 1.28

Fe2O3 % 0.30max 0.17

TiO2 % 3.00max 2.62

Melting Point ℃ 2050

Refractoriness ℃ 1980

True Density g/cm3 3.90min

Mohs hardness --- 9.00min

Refractory Grain Sizes mm 0-50, 0-1, 1-3, 3-5, 5-8

Fine Powder mesh -80, 100, 150, 200, 325F

Abrasives Grits FEPA 8, 14, 16, 20, 22,24, 30, 36, 40, 46, 60, 70, 80, 90, 100, 120, 150, 180, 220, 240

Applications of Brown Fused Alumina for Refractories

01.

Refractory Materials

Brown fused alumina is mainly used in refractory materials, iron hook castables, water-free mud, corundum bricks, prefabricated parts, breathable bricks, ladle bricks, magnesia-alumina-carbon bricks, etc.

02.

Silicon-aluminum Series

Brown fused alumina is generally used in refractory materials for aggregates and fine powders, mainly for the silicon-aluminum series. The volume is stable when making products. However, since impurities have not been completely removed during smelting, brown fused alumina also contains secondary crystal phases such as calcium hexaaluminate, anorthite, spinel, and rutile, as well as glass phases, ferroalloys, and solid solutions. Therefore, the impurities of brown fused alumina determine the life of brown fused alumina products during use.

03.

Foundry Industry

In the foundry industry, brown fused alumina is suitable for making large-scale steel castings, especially the mold (core) surface sand, paste, and paint of alloy steel castings. The investment casting shell made of brown fused alumina has good dimensional stability, thermal stability, and high-temperature chemical stability, and is a good refractory material for investment casting. Due to its high price, it is only used as a molding material for castings such as heat-resistant high-alloy steel, stainless steel, and magnesium alloy.

As one of abrasive material suppliers, we can provide kinds of abrasive material for sale, if you have needs, please contact us.
