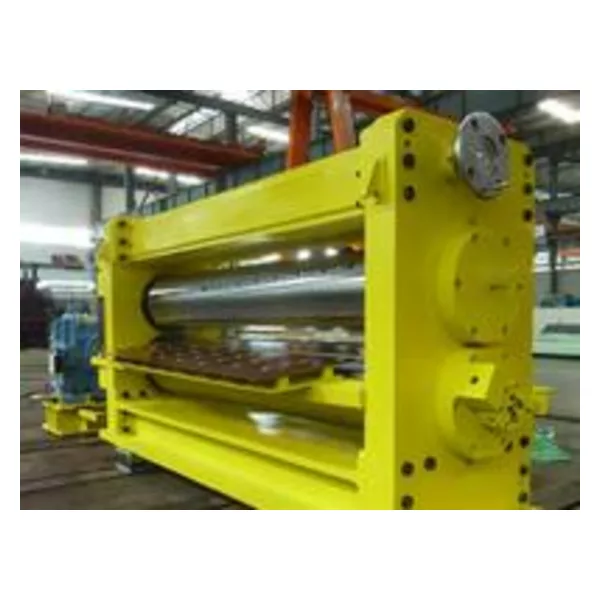

Cut to Length Machine
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
BOYA steel cut to length machine is often used in steel rolling production line. In the continuous rolling billet workshop or small section workshop, it is placed at the end of the rolling line to
cut the rolled pieces into fixed length or only the head or end of cutting part. In cold and hot rolling workshops there are various types of flying shears used in the horizontal shear unit, heavy
shear unit, galvanizing unit and tin plating unit, which cut the strip into a fixed size or cut into a specified weight coil.
BOYA cross-cutting shear is advanced, high precision, greatly promote customer production to high-speed and continuous development.
What's Cut to Length Shear?
Cut to length shear is a Horizontal shear machine used for unwinding, leveling, sizing, cutting into the required length of flat sheet and stacking.
Suitable for processing cold rolled and hot rolled carbon steel, silicon steel, tinplate, stainless steel and coated metal materials. According to the application, BOYA equipment can be classified
as silicon steel transverse shear line (transformer core transverse shear line), stainless steel transverse shear line, copper foil aluminum foil transverse shear line, cardboard transverse shear
line and so on. According to its electronic control type can be classfied into CNC transverse shear line, pneumatic transverse shear line and so on.
Types of metal cut to length machine
Drum Fly Shear for Cold Rolling Mill
Drum flying shears are used at the exit of various continuous cold rolling mills for strips to realize dynamic sub-coiling. During the shearing process, the upper and lower drums of the flying
shears make circular motions, and the shear blades installed in the drums perform shearing motion with the rotation of the drums to cut the strip. The flying shear can automatically or manually
adjust the side clearance of the cutting blade through the adjustment device to meet the cutting needs of different specifications of strip steel.
Hydraulic Shear
The hydraulic shear produced by BOYA Company is widely used in steel, stainless steel, and aluminum plate production lines to cut the head and tail, which is convenient for belt threading, and
reduces the damage to the equipment and rollers caused by the head and tail. The sample tape can be cut and tested, at the same time.
Cut to length machine for sale during High Speed Cut Blade Temperature Impact
Based on the pursuit of coil automatic cut to length machines efficiency, we need to increase the shear speed and reduce cutting time. However, while increasing the shear speed, the working
temperature of the ctl machine blade rises, the force is large, causing the blade to accelerate wear. On the other hand, the blade is affected by the heat expansion, and further affects shear
quality.
In the initial stage of the shear, the overall temperature of the cut to length machine is raised. As coil metal processing machinery shear is stable, the blade is in contact with the strip, the
high-temperature area is increased, and the remainder temperature is slightly reduced; after shear enters the steady-state, the blade edge temperature Although it increases, the increase is
gradually reduced until it is stable in a constant temperature.
For more information about cut to length machine price and cut to length machine videos, please feel free to contact us!
There are many cut to length machine manufacturers, but we are one of the best choices for you.
Boya company, as an excellent flat rolling manufacturer, offers a wide range of steel plant finishing line for you to choose from.
