Dryzone dry nitrogen box has a fast recovery time which is important for some industry demand, especially the Semicon industry. Our N2 cabinets use the humidity value to control the N2 filling, and
they are equipped with QDN(Nitrogen Saving Module) which could save 40-60% RH N2 compared to traditional nitrogen dry boxes, and we could also upgrade your traditional nitrogen cabinet or dry
cabinet with our NC-2 (Nitrogen Controller Module) to help you save the N2 or dry air if you are in need. Our Dryzone Nitrogen n2 dry box is the perfect solution. Equipped with advanced features
such as low-humidity control, adjustable shelves, and anti-static protection, this cabinet ensures optimal performance and protection.
HOW DOES DRYZONE NITROGEN CABINET WORK COMPARE TO TRADITONAL NITROGEN CABINET?
Dryzone nitrogen cabinet adopts an intelligent FUZZY micro-computer induction system. After setting the humidity value, the microcomputer will automatically sense, and when the humidity exceeds,
nitrogen will be added. Otherwise, it will stop N2 filling, which can really achieve the effect of energy saving. And have the N2 delay filling design when opening the door to fetch goods, in this
way to avoid unnecessary loss of nitrogen, abandon the traditional use of a real-time controller and magnetic valve to sense the intake time of the opening and closing door, set a fixed time for N2
filling, tend to cause the loss of N2.
Other than the traditional moisture prevention by using desiccant, you could also choose the Dryzone nitrogen control cabinet which just fills N2 to remove the moisture. The principle is the
moisture is HO2 which is in the air, by filling N2 and setting the humidity value in the LED, the nitrogen will squeeze the air in the nitrogen desiccator cabinet and remove the humidity in the air
and once the humidity reaches your setting value, it will stop N2 filling. And compare to the traditional dry box cabinet, the nitrogen control cabinet always has a faster recovery time.
N2 CABINET SPECIFICATIONS
N2 Cabinet Specifications
CQB-315 Nitrogen Cabinet
Outside Dimension: W905*D475*H1050MM
Internal Dimension: W903*D425*H869MM
Capacity: 334L
Shelves: 3shelves
Power Consumption: 55w/h(Ave);150w/h(Max)
Color: Black
ESD Paint: 106~109Ω
N2 Cabinet Specifications

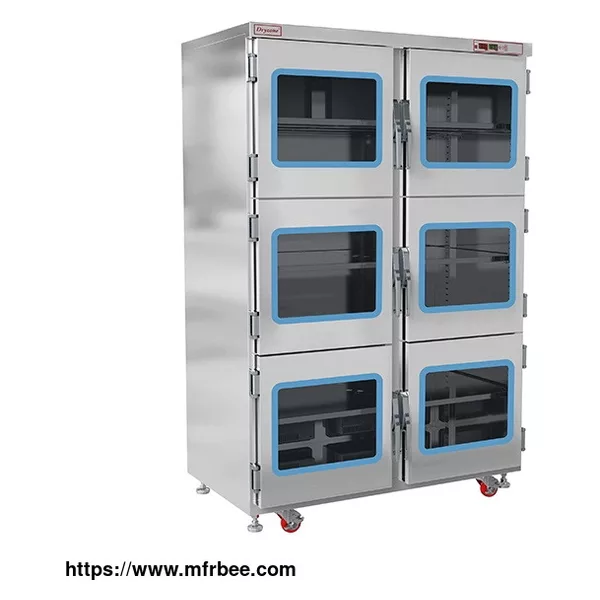

CQS-1200-6 Nitrogen Cabinet
Outside Dimension: W1200*D695*H1820MM
Internal Dimension: W1198*D645*H1618MM
Capacity: 1250L
Shelves: 5 shelves
Power Consumption: 105w/h(Ave);300w/h(Max)
Color: Siver White
Voltage: 230V/110V
