Garri Processing Plant Garri Processing Line

Features of Garri Processing Plant Garri Processing Line

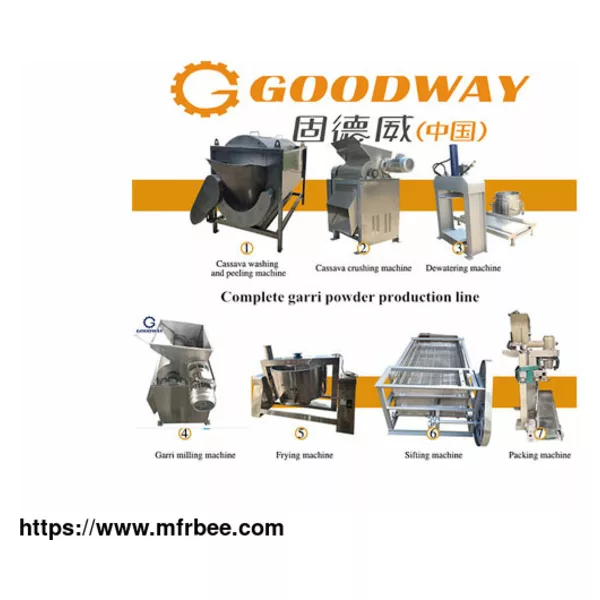

The automatic garri processing line is a series of cassava processing machines to make white garri(gari) or yellow garri(gari) from the fresh cassava roots. The whole set of garri production line includes the cassava washing and peeling machine, Cassava Grating Machine, hydraulic cassava mash dewatering machine, cassava grinding machine, Garri Frying Machine, Garri Sieving Machine and gari packing machine. All these garri processing equipment can be different models and various working capacities for users to choose in making garri powder under different cassava flour processing requirements.

How how to make starch from cassava?

To make good garri(gari) from the fresh cassava roots, especially the mass production of fine garri powder, a variety of cassava processing machines are needed as the support. The entire garri production process including cassava washing and peeling, cassava grating, cassava dewatering, milling and sifting, garri roasting, garri screening, and garri packaging.

Steps in garri processing line

1. Cassava washing and peeling machine

The cassava peeling and washing machine is mainly composed of motors, transmissions, and brush rollers. It is taking the characteristics of root and tuber processing machinery at home and oversea. It uses the principle of brush friction and is widely applicable to round, oval fruits and vegetables such as ginger, Carrot, potato, potato, sweet potato, and other root potato vegetables for cleaning and peeling, can also be walnuts, ginkgo and other dried fruit materials such as peeling and shelling. It is an ideal equipment for agricultural product processing like Garri processing.

Cassava Peeling MachineTechnical Parameter:

Model No. GD-BP-1000 GD-BP-1500 GD-BP-2000 GD-BP-3000

Machine Material Stainless steel Stainless steel Stainless steel Stainless steel

Capacity 500kg/hour 1000kg/hour 1500kg/hour 2000kg/hour

Voltage 380V & 50/60Hz 3Phase

Power 3.00kw 4.00kw 4.00kw 5.50kw

Rotate speed can be adjusted can be adjusted can be adjusted can be adjusted

Inner diameter of rotary drum 800mm 800mm 800mm 800mm

Inner length of rotary drum 1000mm 1500mm 2000mm 3000mm

Weight 400kg 500kg 900kg 1200kg

Dimension(L×W×H)mm

2. Cassava grating machine

Cassava grating machine

To crush the peeled cassava into small pieces or cassava mash, the cassava grating machine can be a good helper. The cassava grater has two pairs of inner crushing rollers in its grating chamber. The smaller crushing roller can do coarse crushing of the cassava, and the bigger one will do further fine grating of the cassava. We can use a conveyor for automatic adding of cassava for grating or put the cassava manually to the crushing machine inlet during the garri processing line.

Cassava Crusher Technical Parameter:

Model No. GD-GG-1000 GD-GG-3000 GD-GG-5000

Machine Material Stainless Steel Stainless Steel Stainless Steel

Capacity 1000-2000Kg/Hour 3000-4000Kg/Hour 5000-6000Kg/Hour

Voltage 380V & 50/60Hz 3Phase 380V & 50/60Hz 3Phase 380V & 50/60Hz 3Phase

Power 7.5KW 11KW 15KW

Weight 250KG 350KG 450KG

Dimension(L ×W ×H) 1300×700×1400mm 1300×1000×1400mm 1300×1300×1400mm

3. Cassava mash fermenting

Before the cassava mash dehydration, we should do fermentation of the cassava slurry to increase the good tastes of the garri and improve various probiotics, protein, and amino acid content. We can use the clean polythene sack to divide the cassava mash into several bags and lay them on the rack for 1-2 days' fermenting. The milky water will drain freely from the bags and we can use the container to collect them for extracting the cassava starch. Do not ferment the cassava slurry for a too long time, because long time fermenting will make the cassava mash become very hard.

4. Cassava dewatering machine:

Cassava dewatering machine

The common used cassava mash dewatering machine for garri production line is the hydraulic press equipment. When doing cassava dehydration, we should put the bagged cassava mash(which has been fermented) into the press barrel, then push the press button of the cassava dewatering machine. The press force comes from the hydraulic power of this dehydrating machine. And the pressed milky liquid can be collected for making fine cassava starch.

Cassava Pressing Machine(hydraulic press dewater) - Technical Parameter:

Model No. GD-HP-400

Machine Structure Single-Column Single-Cylinder

Machine Material Stainless steel

Capacity 200-300KG/H

Press Frame Volume 400L

Voltage 380V&50/60Hz 3Phase

Power 4.0KW

Cylinder Pressure 15MPa/30t

Interior Casing Dimension 1000×400×1200mm

Dimension(L X W X H) 1250×700×1250mm

Weight 500KG

5. Garri frying machine

This Garri Frying Machine is an important garri processing machine in the whole garri(gari) production line, which can do further dehydration of the cassava flour and can evaporate the poisonous hydrocyanic acid. Add the cassava flour into the frying pot which is a jacketed kettle with electric heating function, and then the inner mixing shaft will rotate for stirring the garri evenly.

When the frying temperature reaches about 50-60℃, the hydrocyanic acid will be evaporated greatly. During this cassava roasting link, we can also add the palm oil for making the yellow garri.

Electric Garri Fryer Machine Technical Parameter:

Model No. GD-EF-1200

Heating Type Electric

Power 36KW + 1.5KW

Machine Material Stainless steel

Capacity 100-150KG/H

Voltage 380V/50Hz 3Phase

Rotate Speed can be adjusted

Heat Transfer Area 2m2

Operating Temperature 150-180℃

Inner Diameter of Pot 1200mm

Inner Depth of Pot 400mm

Inner Volume of Pot 400L

Weight 850KG

Dimension(L X W X H) 2440×1310×1700mm

6. Garri(gari) powder milling and sieving machine

The garri sieving machine is three-stages screening equipment for sieving out the fine garri powder. Pour the garri onto the screening mash, and the garri flour will be sieved layer by layer through the continuous vibration of this machine. After screening, we can get three kinds of garri powder with different fineness. And the gari with bigger particles can be re-crushed by the crusher machine for fine garri powder.

7. Garri packing machine

The automatic packing machine is a very useful machine for packaging the garri powder into the independent bags quantitatively. The packing amount for each bags is up to your actual requirements. And we can also customize the patterns and letters on the garri packing bags for you.

If you want to know more about garri processing machine price and cost of garri processing machine , please contact us.
