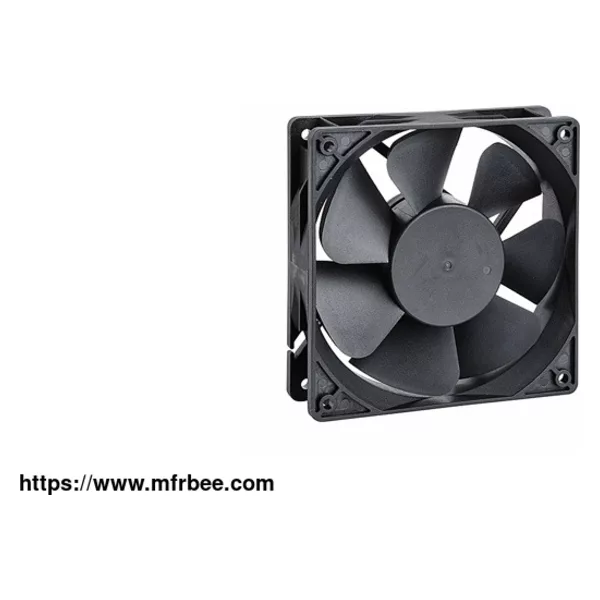

DFX12032 DC Axial Fan

FOB Price: USD $100.00 / Piece
Place Of Origin: china

Minimum Order: 1

Packaging: N/A

Delivery: 15 Days

Specifications of DFX12032 DC Axial Fan

Listed Rated Operating Rated Current Rated Speed Air Static Noise Available Features (Optional) Weight

Model Voltage Voltage Flow pressure Level

（VDC）（VDC）（A）（RPM）（CFM） (mmH2O) (dBA) g

Tachometer Rotation Thermal Pulse Width

Output Detector Control Modulation

DFX123212D 12 6.0~13.8 0.90 3,800 116.30 10.20 51.40 ◆ ◆ ◆ ◆

DFX123212H 6.0~13.8 0.65 3,300 101.00 7.70 47.70 ◆ ◆ ◆ ◆ 235

DFX123212M 6.0~13.8 0.50 2,900 88.70 6.00 44.30 ◆ ◆ ◆ ◆

DFX123212L 6.0~13.8 0.35 2,500 76.50 4.40 40.50 ◆ ◆ ◆ ◆

DFX123224D 24 12.0~27.6 0.50 3,800 116.30 10.20 51.40 ◆ ◆ ◆ ◆

DFX123224H 12.0~27.6 0.35 3,300 101.00 7.70 47.70 ◆ ◆ ◆ ◆

DFX123224M 12.0~27.6 0.25 2,900 88.70 6.00 44.30 ◆ ◆ ◆ ◆

DFX123224L 12.0~27.6 0.20 2,500 76.50 4.40 40.50 ◆ ◆ ◆ ◆

DFX123248D 48 24.0~53.0 0.30 3,800 116.30 10.20 51.40 ◆ ◆ ◆ ◆

DFX123248H 24.0~53.0 0.20 3,300 101.00 7.70 47.70 ◆ ◆ ◆ ◆

DFX123248M 24.0~53.0 0.16 2,900 88.70 6.00 44.30 ◆ ◆ ◆ ◆

DFX123248L 24.0~53.0 0.12 2,500 76.50 4.40 40.50 ◆ ◆ ◆ ◆

X=S: Sleeve Bearing or B: Ball Bearing or H: Hydro Bearing; Specifications are subject to change without notice

Description of DFX12032 DC Axial Fan

Frame: PBT OF UL 94V-0

Impeller: PBT OF UL 94V-0

Bearing Type: Sleeve Bearing & Ball Bearing& Hydro Bearing

Lead Wires: UL Type or Equivalent ( + ) : Red ( - ) : Black

Motor Protection: Reverse Polarity Protected; Automatic Restart

Operating Temperature and Humidity: -10℃～70℃,5%～90%RH

Storage Temperature and Humidity: -40℃～80℃,5%～95%RH

Xie Heng Da axial cooling fan supplier possess the capability to conceptualize and create novel 120mm 12 volt fans tailored to the unique requirements of our clients.
