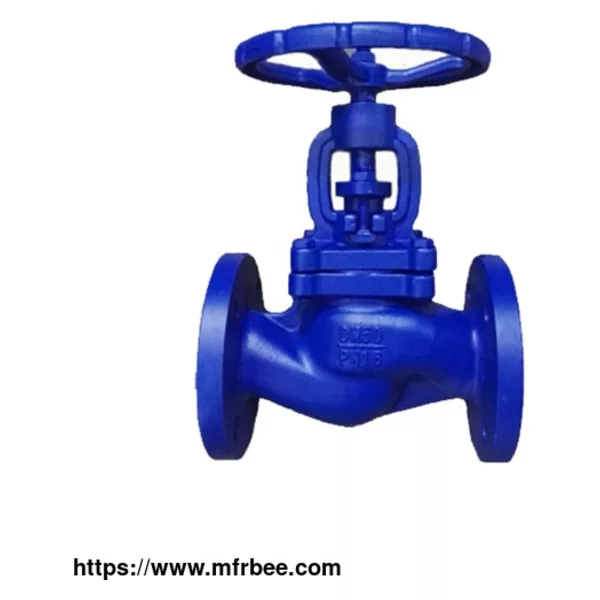

DIN CAST IRON FLANGED GLOBE VALVE

DIN CAST IRON FLANGED GLOBE VALVE

MstnLand runs a qualified cast iron globe valve factory in China. Our ductile iron globe valve series is mainly used for cutting off or connecting the medium in the pipeline, generally not used for regulating the flow.

Body material: Grey cast iron GG25

Size range: DN15～300

Pressure rating: 1.6MPa

Operating temperature: -10～200℃

End connection: Flanged

Applicable medium: Water, Sewage, Steam, Oil

Mode of operation: Manual

Applicable industry: Water & Water Treatment

Power generation

Pulp & Paper

Municipal

Design & Manufacture: API, ASME, ASTM, ANSI, BS, DIN, JIS, ISO, GB

DIN Cast Iron Flanged Globe Valve Features

MSTNLAND is not only among China's top cast iron gate valves manufacturers, we also provides high qiality cast iron globe valves. Cast Iron Globe Valve, also called water globe valve.It is specially designed to suit for transportation,distribution and extraction system in water, air, oil and gas industry.Their bodies are made from ductile iron or cast iron and have integral flanges which are available in two basic types;non-rising stem Inside Screw and rising stem Outside Screw and Yoke type. The inside screw type has the stem actuating thread within the pressure envelope and is non-rising. This type of valve is usually used for non corrosive and reasonably clean services and has a smaller overall height than the outside screw type. The outside screw, rising stem type has the stem actuating thread outside the pressure envelope and can be used on more active media where the fluid might otherwise have an adverse affect on the thread. The cast iron globe valve is used often in applications like Heating, water distribution and water at Min and max Temperatures between - 10°C to + 120°C. Cast iron globe valves are avaiable for use in commercial and industrial applications. Typical services include hot and cold water, HVAC, and other general utility services. That's why cast iron flanged globe valves are common valves used in sewage treatment plant.

DIN Cast Iron Flanged Globe Valve Installation and Commissioning

Installation and commissioning

Thoroughly clean and prepare the piping system before valve installation.

Remove the valve end caps if present, and inspect the valve ports and seating

surfaces for cleanliness just prior to installation.

Support the valve to prevent unnecessary stresses induced by connecting pipe.

Be sure the rating of the valve is compatible with the intended service conditions. Recommended

aptitude is with the stem in the vertical position. Horizontal stem installations can present issues for

larger valves, especially in reduced pressure service such as low pressure(5-35 psi) steam.

Bolt flange in line per recommendations of applicable ASME/ANSI standard, e.g. ASME/ANSI

B16.1. Use full face gaskets.

Operate the valve from the full open to closed position.

Verify the tightness of the packing nut/gland after installation.

Recommended installation: Stem in the vertical position with operator on top.

Notice:

Globe valves work in one direction only. Keep this in mind when you’re installing the valve. Proper installation means less wear and tear on the valve over time.

Mount the valve vertically on the pipe with the handwheel pointing up. This puts the working parts of the assembly under less pressure.

Never overtighten the handwheel. Overtightening puts added pressure on the gland packing. If there are issues with leaks, it means there’s a problem with the seat or the plug.
