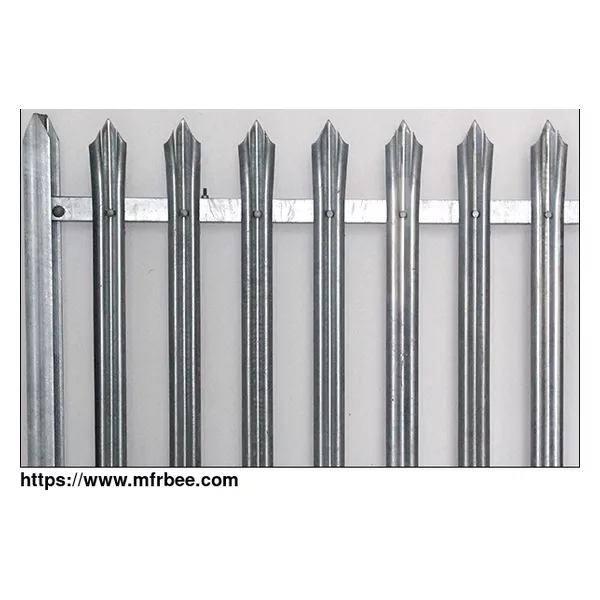

Hot Dipped Galvanised Palisade Fencing
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Hot Zinc Galvanised Steel Palisade
Material:Q235
Height: 1200mm/1500mm/1800mm/2100mm/2400mm/2700mm/3000mm/3600mm
Width: 2750mm per bay or as you requirement
Pale type: D type, W type
Head type: Pointed, Triple pointed, Rouned, Rouned and notched, Flat ,star
W pale thickness: 2mm , 2.5mm, 3mm
Angle rail: 50x50 RSA or 40x40 RSA
Rail thickness: 4mm/5mm/6mm
RSJ post: 100*55*3.5mm
Fish plate:150*30*7mm
Bolts & Nuts: M8×25mm-34pcs and M12×30mm-4pcs
Surface treatment: Hot dipped galvanized (500g/m2, 70um and others)
Fencing Types and Target Markets
Industrial Grade Palisade in galvanized finish, complete with all posts and fixings
2.50 M High Palisade Panels, HDG (Hot Dip Galv.) GI, delivered to Ireland
Panels of Horizontal Rails and Vertical Posts, Hot Dipped Galv.
Galvanized w pales 2mm
Hot Dipped Galvanized Steel Palisade for High Security
Anti-climbing W Pale Galvanized Palisade with Razor Wire
Panel size 2.1m high x 4m long
w pale : 80x19mm x 2.5mm thick x 2.05mm long with a single point 100mm long -w palespaced at 160mm crs, 18 pales per panel
Rail : 50 x 80mm x 2.5mm thick x 4m long, 2 pce per panel
Reinforcing angle 50 x 50 x 2.5mm thick x 4m long, 1 pce per panel
Post : 100 x 150mm x 2.5mm thick x 4m long
Pale, rail, post & components all hot dipped galvanized at zinc quantity 600g/m2
Fasteners : stainless steel bolts with tamper resistant shear off security nuts
Razor wire: Hot dipped galvanized razor barbed tapes
Gates: Hot dipped galvanized finish as fence
With gate posts,chains, locks, drop bolts and accessories
3 x sets vehicle gates double leaf x 4m wide
4 x sets vehicle / crash gates double leaf x 6m wide
3 x sets pedestrian gates single leaf 2.1m h x 1m wide
