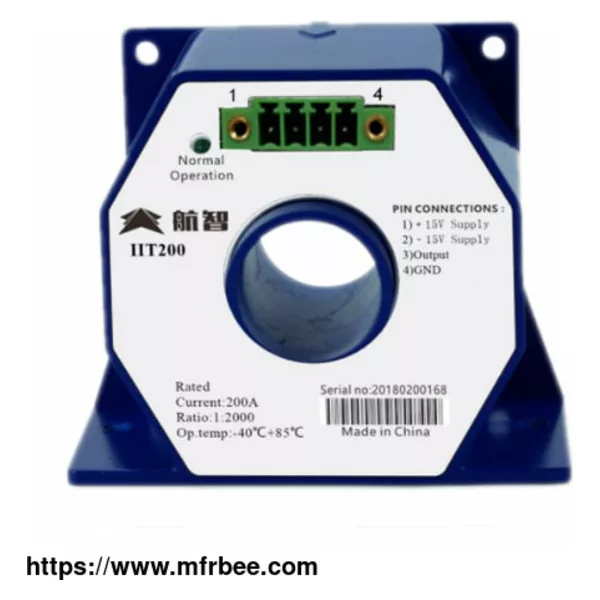

IIT200 Industrial-Grade Current Sensor Transducer

Minimum Order
1
FOB Price
USD $139.00 / Piece
Place Of Origin
China (Mainland)
Packaging
1pcs each PVC box
Delivery
10 Days
IIT200 has a high gain and measurement accuracy in the full bandwidth range, due to the application of the
multi-point zero-flux technology system and high-frequency ripple sensing channel on top of currently existing
DC sensor technology.

Primary Nominal Current: DC200A, AC141A,
Overload Capacity: DC240A for 1 minute,
Power Supply: DC14.2V to 15.8V,
Ratio: 2000:1,
Secondary Burden Resistance: 10 ~ 25Ω,
Accuracy: 0.02%,
Linearity: 20ppm,
Current Change Rate: 200A/us,
Frequency bandwidth(-3dB): up to 100KHz,
Insulation Voltage (Between primary and secondary): 5KV,
Operation Temperature Range: -40 ~ 85℃.
