RIT001M Residual Current Sensor Transducer

FOB Price: USD $239.00 / Piece
Place Of Origin: China (Mainland)

Minimum Order: 1

Packaging: 1pcs each PVC box

Delivery: 10 Days

RIT001M has a high gain and measurement accuracy in the full bandwidth range, due to the application of the

multi-point zero-flux technology system and high-frequency ripple sensing channel on top of currently existing

DC sensor technology.

Primary Nominal Current: DC0.01,

Overload Capacity: 200% for 1 minute,

Power Supply: DC14.2V to 15.8V,

Output Voltage: ±1V,

Accuracy: 1%,

Linearity: 0.2%,

Zero Offset Voltage: ±10mV,

Dynamic Response Time: 2ms,

Frequency bandwidth(-3dB): up to 100KHz,

Insulation Voltage (Between primary and secondary): 5KV,

Operation Temperature Range: -40 ~ 85℃.

Country: China (Mainland)
Business Type: high precision current sensor, voltage sensor, electrical measuring instrument
Market:Americas,European Union,Asia,Oceania,G20,Emerging Markets,Middle East
Founded Year:2017
Address:Room 330, Building B, Huayuan Hi-tech Pioneer Park, Baoyuan Rd, Bao An District, ShenZhen, Guangdong Province, China
Contact:leon li

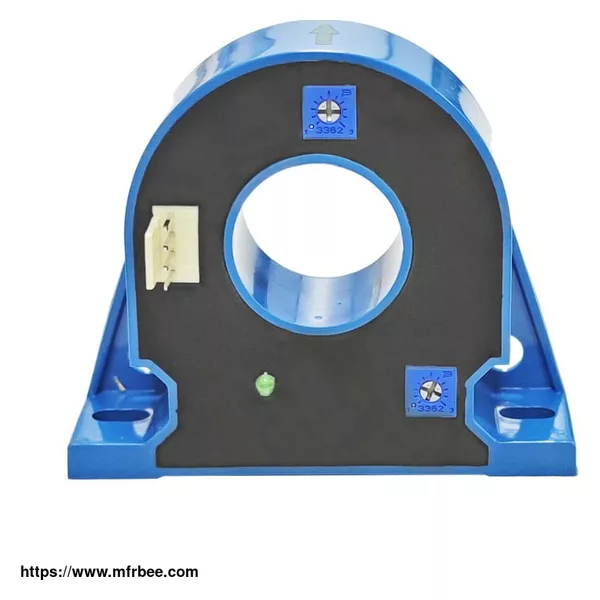

RIT001M Residual Current Sensor Transducer
