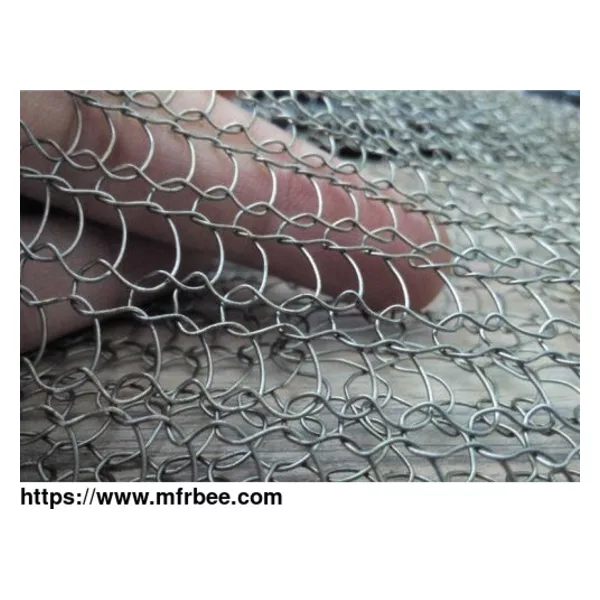

Knitted Wire Mesh

JD Hardware Wire Mesh Co., Ltd specializes in producing Knitted Wire Mesh, known as foam catching or woven screen mesh. This unique mesh is key in making screen demisters, oil and gas separators, and dust removal systems. It plays a vital role in environmental protection, reducing engine noise, and dampening mechanical shocks. Our Knitted Wire Mesh is highly versatile, widely used in the automotive and electronics industries to meet various requirements. We are committed to providing high-quality, adaptable wire mesh solutions for diverse industrial needs.

General specifications

• Material Variety in Knitted Wire Mesh
  Our Knitted Wire Mesh is available in a wide range of materials to suit diverse applications. These include various types of stainless steel such as 304, 316, 430, 317, 310S, 321, 410 . We also offer other metals like brass, copper, monel, nickel, titanium, 1Cr18Ni9Ti, Cr20Ni80, and Cr20Ni50, catering to specific needs and environments.
• Wire Diameter Specifications
  The wire diameter of our Knitted Wire Mesh ranges from 0.1mm to 0.55mm, available in both flat and round wire options. The most commonly used diameters are between 0.20mm and 0.25mm, balancing strength and flexibility.
• Hole Size and Shape
  Our mesh comes in various hole sizes including 4mm×3mm, 5mm×6mm, 2mmx4mm, and 4mmx5mm, among others. The hole shape is irregular, offering unique filtering capabilities.
• Range of Widths
  We provide Knitted Wire Mesh in a range of widths from 40mm up to 600mm, with popular sizes including 80mm, 100mm, 150mm, 200mm, 300mm, 400mm, and 500mm, accommodating different scale requirements.
• Length Options and Customization
  Standard lengths of our mesh range from 30 meters to 200 meters, with the option for customization to meet specific length requirements.
• Thickness Variability
  The thickness of our Knitted Wire Mesh varies from 0.12mm to 2.5mm. Customized thickness options are also available, allowing for a tailored approach to different applications.
• Craftsmanship and Design
  Our mesh is crafted through layered, spiral wound, or compressed techniques, creating a tortuous path that is highly effective for particle capture. This craftsmanship enhances the mesh’s filtering efficiency.
• Surface Type Selection
  We offer two main surface types for our Knitted Wire Mesh: flat-type and corrugated type. Each type serves different functional purposes, depending on the application.

Type

Knitted wire mesh, adaptable for various applications, comes in different forms. It can be made with either flattened or round wires, leading to two types: Round Wire Knitted Wire Mesh and Flat Wire Knitted Wire Mesh. Additionally, based on the filament used, it’s available as either Mono-filament Knitted Wire Mesh or Multi-filament Knitted Wire Mesh, each serving specific industrial requirements.

Round Wire Knitted Wire Mesh

This type of mesh is made using round wires. Round wire knitted mesh is known for its flexibility and strength, making it suitable for applications where these attributes are crucial. Its rounded surface is ideal for filtration and separation processes, as it provides an even and consistent mesh structure.
