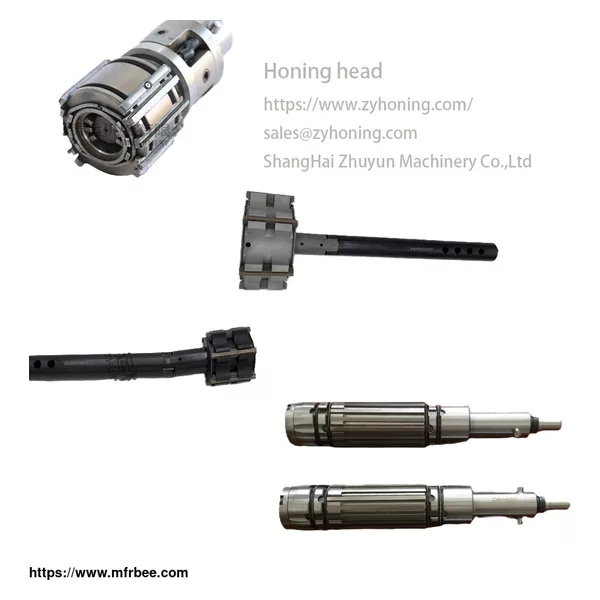

Honing head
Product Quick Detail
- Place Of Origin
- China
- Minimum Order
- 1
- FOB Price
- USD $2,000.00 / Piece
- Packaging
- 1
- Delivery
- 15 Days
Specifications
Shanghai Zhuyun Machinery Co., Ltd supplies Sunnen alternative GHSS honing heads, including GHSS-1480, GHSS-1950, GHSS2440, GHSS-2800, GHSS-3410 and GHSS-4410, as well as two-stage Hone Head
GHTS-2440, GHTS-2800, GHTS-3410
GHSS-1480 Hone Head:Hone aperture range from 37.59mm - 49.78mm (1.48"~1.96")
GHSS-1950 Hone Head:Hone aperture range from 49.53mm - 62.99mm (1.95"~2.48")
GHSS-2440 Hone Head:Hone aperture range from 61.97mm - 71.88mm (2.44"~2.83")
GHSS-2800 Hone Head:Hone aperture range from 71.12mm - 90.42mm (2.80"~3.56")
GHSS-3410 Hone Head: Hone aperture range from 86.61mm to 112.77mm (3.41"~4.44")
GHSS-4410 Hone Head: Hone aperture range from 112.01mm - 140.72mm (4.41"~5.54")
The GHSS series of honing tools were developed for Sunnen or other brands of vertical honing machines. Honing tools include three to four sets of six or eight spring-loaded stones that use diamond
or CBN abrasives.
GHSS-2800 Hone Head
The diameter of the hole is from 71.12 mm to 77.72 mm, 77.47 mm to 84.07 mm, and 83.82 mm to 90.42 mm. Use 3 sets of stone brackets of different heights for different apertures.
We also offer custom honing heads for your specific application.
Shanghai Zhuyun Machinery Co., Ltd supplies Sunnen two-stage Hone Head GHTS-2440, GHTS-2800, GHTS-3410 etc.
Used on Honing Machines: Sunnen SV10, SV20, SV15, SV-30 CV-616, CK21 honing machines and other brand Vertical Honing machines.
