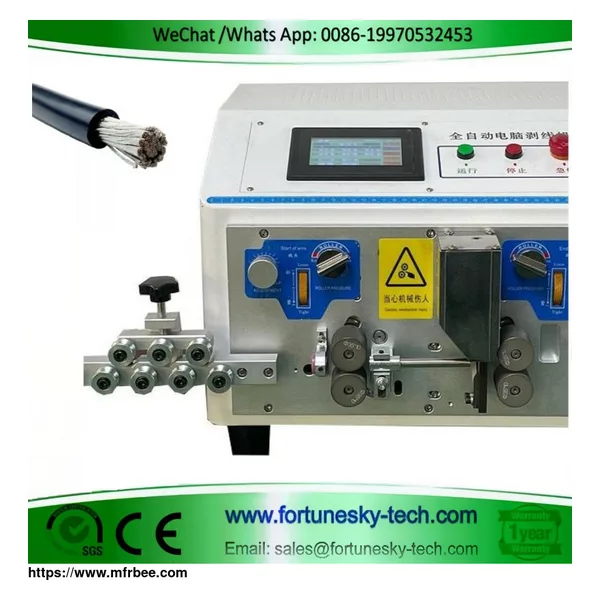

Automatic Heavy Gauge Wire Cutting and Stripping Machine

Place Of Origin
China
FOB Price
USD $3,299.00 / Piece
Minimum Order
1
Packaging
Plywood Box
Delivery
2-3 working days
Conquer Thick Wires with the Automatic JT-502 Wire Processing Machine
Stop struggling with manual wire processing! The JT-502 tackles even the thickest wires with ease, thanks to its innovative design and advanced features. This machine automates your workflow, boosting productivity and achieving consistent, high-quality results.

Effortless Power and Precision:

Handles Large Wires: Effortlessly cut and strip wires from 0.1mm to 16mm², ideal for industrial applications.

Unmatched Accuracy: Delivers precise cutting and stripping lengths with minimal tolerance (0.002 x L mm).

Automated Efficiency: Features automatic shutdown, wire infeed/outfeed, and timing start for a streamlined workflow.

High-Volume Processing: Processes 1000-3000 strips per hour, perfect for large-scale projects.

User-Friendly Design:

Compact Footprint: The compact design makes it ideal for space-saving integration into your workspace.

Intuitive Interface: The user-friendly 4.3-inch touchscreen with bilingual (Chinese and English) options simplifies operation.

Technical Specifications:

Model: JT-502

Dimensions: 470mm x 430mm x 380mm

Weight: 38kg

Display: 4.3-inch Touchscreen (Chinese and English)

Power Supply: AC175V-250V, 50/60Hz

Power Consumption: 120W-220W

Cutting Length: 0.1mm-99999.9mm

Stripping Length: Head: 0.1-30mm, Tail: 0.1-30mm

Cutting Core: 0.1-16mm²

Cutting Tolerance: 0.002 x L(mm)

Intermediate Stripping: 13 points (can be added)

Conduit Diameter: 1.5mm-9mm

Tool Material: Tungsten Steel/Imported High-Speed Steel

Drive Mode: Four-wheel Drive

Wire Stripping Rate: 1000-3000 strips per hour (adjustable)

Wire Pressure Adjustment: Manual Skate Adjustment

Pulse Equivalent: 1 pulse = 1 step

In-line Error: 0.05mm

Blade Motor Accuracy: 0.03mm per step

Inlet and Outlet Motor Precision: Silent hybrid stepper motor (0.1mm per step)

Additional Features (Optional): Automatic shutdown due to lack of wires, automatic outgoing wires, automatic incoming wires

The JT-502 is a powerful and versatile solution for industrial wire processing. This machine automates tasks, ensures precision, and significantly improves your overall workflow efficiency.
