Automatic Control Cable Cutting Jacket and Insulation Stripping Machine

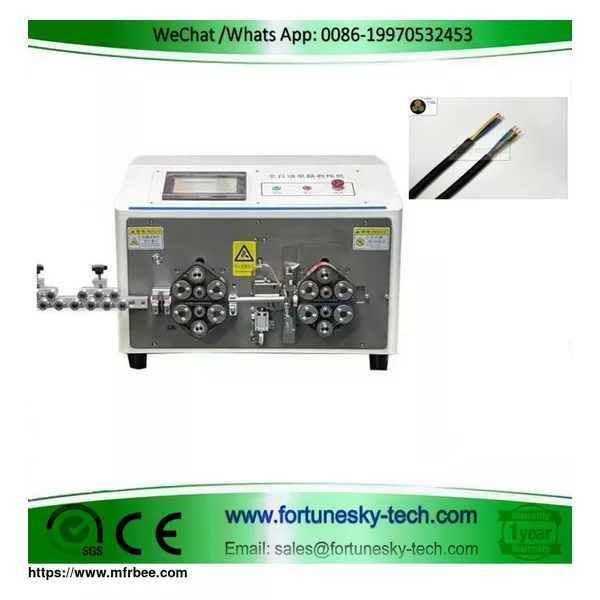

The JT508: All-in-One Power Cable Processing Machine

The JT508 Automatic Control Cable Cut-Stripper is a one-stop solution for all your power cable processing needs. This versatile machine tackles multi-core power cords and even special single-core wires, maximizing your efficiency and production quality.

Unmatched Functionality:

Multi-task Master: Perform wire cutting, jacket stripping, core wire stripping, and more, all on a single machine. This eliminates the need for multiple tools and streamlines your workflow.

Precision Stripping: Achieve accurate and consistent results with head stripping lengths from 0.1-250mm and tail stripping lengths from 0.1-100mm.

Data Storage and Retrieval: Store up to 100 sets of processing data for easy retrieval, saving you time and effort on repeat jobs.

Adjustable Cutting Lengths: Cut wires to any desired length with ease.

Technical Specifications:

Model: JT508

Display: Chinese/English (switchable)

Data Storage Capacity: 100 sets

Processing Wire Range:

Cable Diameter: Up to 12mm

Core Wire Quantity: Maximum 8

Stripping Lengths:

Wire Head: 0.1-250mm

Wire Tail: 0.1-100mm

Cutting Length: Adjustable

Wire Feeding and Take-up: Automatic

Main Control Board: Motion Control Board

Drive Mode: Crawler Drive

Net Weight: 105kg

Dimensions: 930mm x 420mm x 370mm

Standard and Optional Features:

Blades: Choose from high-speed steel or tungsten steel blades for optimal performance.

Feeding Rollers: Iron heat-treated rollers or knurled rubber wheels ensure smooth wire feeding.

Display: User-friendly LCD display with a bilingual (Chinese/English) interface.

Additional Features (Optional):

Conduit Diameter Support: Ø4mm, Ø8mm, Ø10mm, Ø12mm

Catheter Swing

Automatic Wire Missing Alarm

Intermediate Cutting

Wire Pressure Regulator

Wire Straightener

Cooling Fan

Inching Manual Commissioning

Cylinder

Counter

Fixed Quantity and Time Control

The JT508 is a powerful and versatile solution for all your power cable processing needs. This all-in-one machine offers exceptional functionality, precision, and user-friendly features, maximizing your productivity and ensuring consistent, high-quality results.
