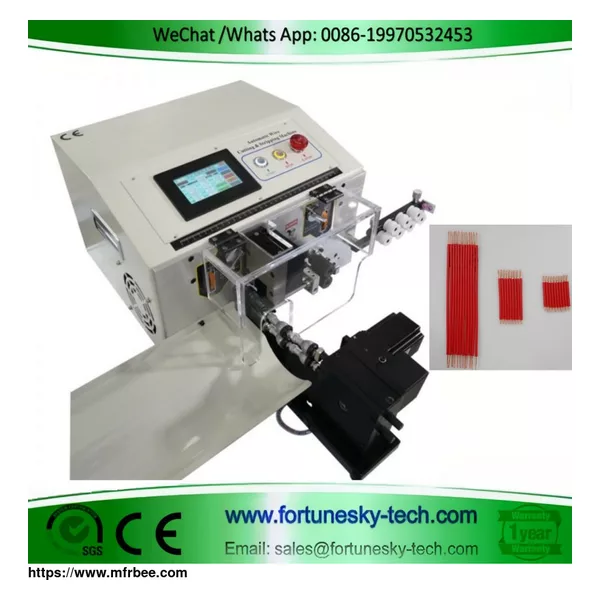

Wire Stripping Machine Cut Strip Twist Stranded Wire

Product Quick Detail

Place Of Origin
China
Minimum Order
1
Packaging
Plywood Box
Delivery
2-3 working days

Specifications

The SWT508-NX2/NX2S: All-in-One Wire Processing Machine
The SWT508-NX2/NX2S is a versatile and user-friendly automatic wire stripping machine, incorporating advanced automation technology. This powerful machine offers a wide range of features for efficient and precise wire processing in various industries.

User-Friendly Design and Advanced Features:

Intuitive Interface: The user-friendly LCD screen with an English/Chinese language option simplifies operation and parameter adjustments.
Customizable Processing: Set wire length, thrum and line end parameters to meet your specific needs.
Multiple Stripping Finishes: Achieve different levels of stripping finishes for various applications.
High-Performance Functions: Includes functions like high-tension line cutting and casing shearing for optimal processing.
Broad Application Range:

Wide Material Compatibility: Processes various wires, including PVC, Teflon, glass fiber, braided, and single/double electric wires.
Industry Versatility: Widely used in electronics, telecommunications, electrical appliances, motors, lighting, toys, and other industries requiring wire processing.
Technical Specifications:

Model No.: SWT508-NX2/NX2S
Power: 350W
Electrical Connection: 110V/220V 50Hz/60Hz
Operation Interface: English/Chinese (LCD Display)
Machine Dimensions: 450mm x 420mm x 290mm
Wire Length Range: 1-10000mm
Stripping Length: Front End: 0-30mm; Rear End: 0-20mm
Length Accuracy: ±(0.002 x L) mm
Wire Cross Section: Double Wire: 0.1-2.5mm²; Single Wire: 0.1-4mm²
Max Conduit Inside Diameter: 6mm
Twisting Method: Double Ended or Single Ended
Wire Material: PVC, Teflon, Braided, Fiberglass Wire
Blade Material: Hard Tungsten Steel
Transport Speed (at 100mm wire length): 3000-6000 pieces per hour
Driving Mode: Four-wheel Drive (Silent Hybrid Stepper Motor, 0.1mm forward per step)
Stripping Speed: Adjustable (0 - slowest; 9 - fastest)
Weight: 38kg
The SWT508-NX2/NX2S Automatic Wire Stripping Machine is a powerful and versatile solution for all your wire processing needs. This user-friendly machine offers exceptional performance, customizable processing options, and broad application compatibility, making it a valuable asset for various industries.
