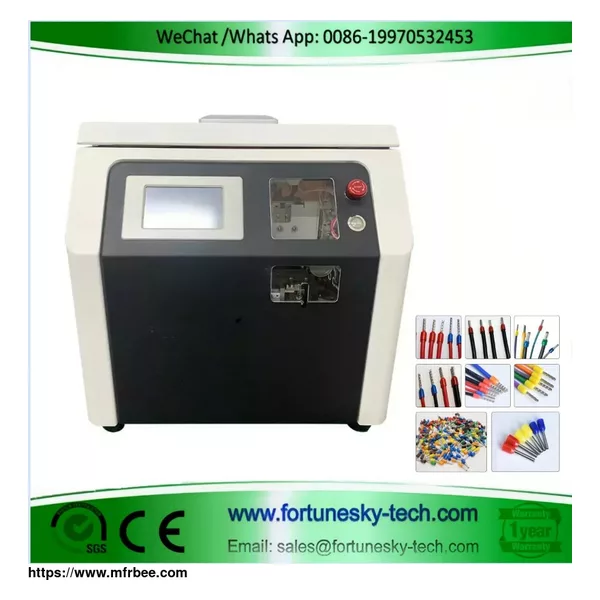

Automatic Wire Threading Stripping Ferrule Crimping Machine

Place Of Origin
China
FOB Price
USD $6,999.00 / Piece
Minimum Order
1
Packaging
Plywood Box
Delivery
2-3 working days
The All-in-One Wire Processing Machine: From Threading to Crimping
TheAutomatic Wire Threading Stripping Ferrule Crimping Machine

Key Features:

Multi-Functional: Performs wire threading, stripping, and ferrule crimping in a single automated process, minimizing manual handling and maximizing efficiency.
Human-Machine Interface: Features an intuitive interface for user-friendly control and operation.
Automatic and Manual Operation: Offers both automatic triggering and manual operation modes for added flexibility.
Broad Wire Compatibility: Suitable for BVR wires in various sizes (0.3, 0.5, 0.75, 1.0, 1.5, 2.5, 4.0, 6.0 square mm).
Diverse Crimping Options: Handles a variety of crimping shapes, including quadrilateral, hexagon, and even custom shapes upon request.
Easy Tool Replacement: Allows for straightforward replacement of fixtures and adjustments, minimizing downtime.
High Production Capacity: Delivers a production rate of 2.5 seconds per wire, ensuring efficient processing.
Safety Features: Includes built-in safety measures like terminal presence detection and safety door monitoring.
Technical Specifications:

Product Name: Automatic Wire Threading Stripping Ferrule Crimping Machine
Power Supply: AC220V 50/60Hz
Air Source: 0.6-0.8MPa (Dry air inlet pressure at minimum 0.6 MPa)
Control Method: Human-Machine Interface, Electronic Control, Pneumatic Control
Running Way: Automatic Trigger, Manual Operation
Suitable Wires: BVR wires (0.3, 0.5, 0.75, 1.0, 1.5, 2.5, 4.0, 6.0 square mm)
Net Weight: Around 60kg
Dimension: 350mm x 450mm x 400mm
Terminal Specifications: Insulation length within 7.5mm, Conductor length within 12mm
Crimping Shapes: Quadrilateral, Hexagon (custom shapes available)
Replacement Procedure: Manual fixture replacement, vibration plate adjustment, and electronic memory adjustment
Production Capacity: 2.5 seconds per wire (single machine cycle)
Operating Environment: Temperature: 10-25°C, Humidity: 30-80%RH (no condensation)
The Automatic Wire Threading Stripping Ferrule Crimping Machine is a valuable asset for businesses that require efficient and high-quality wire processing. This versatile machine streamlines your workflow by combining multiple functionalities into a single, user-friendly solution.
