Fully Automatic Double Wires Three Terminals Crimping Machine

Place Of Origin
China
FOB Price
USD $5,999.00 / Piece
Minimum Order
1
Packaging
Plywood Box
Delivery
5-10 working days

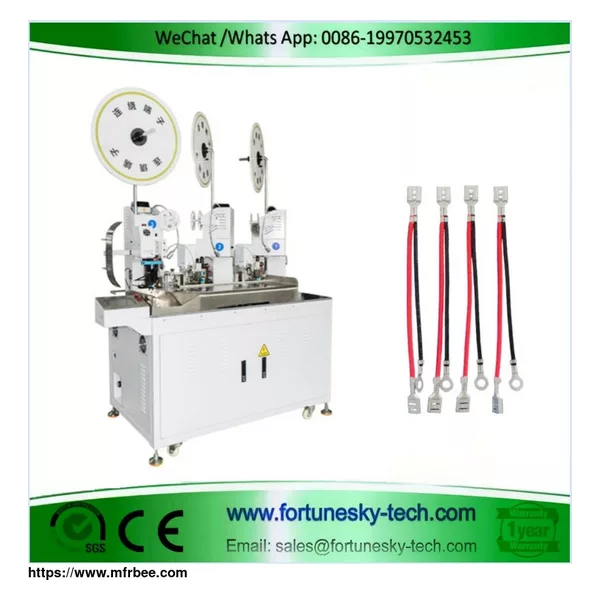

The CM-N03: The Next-Gen Solution for High-Volume, Triple-Terminal Crimping
The CM-N03 Fully Automatic Double Wires Three Terminals Crimping Machine represents a revolutionary leap in wire processing technology. This feature-rich machine automates complex crimping tasks, delivering unmatched efficiency, precision, and ease of use for high-volume production.

Key Features:

Advanced Automation: Fully automates wire cutting, stripping (including both-ends and single-end half stripping), and crimping for single and double wires, including intricate three-terminal crimping applications.
User-Friendly Operation: Employs a modular design with standard parts for effortless adjustment and minimal maintenance. The intuitive touch screen interface with digital parameter control allows for simple operation after basic training, enabling workers to manage two machines simultaneously for maximized production efficiency.
Unmatched Efficiency and Control: Provides digital control over cutting and stripping lengths for exceptional precision and production consistency. The electric cutter design further optimizes processing speed.
High Performance and Stability: Delivers unmatched automation and efficiency, making it the leading high-volume crimping solution in the market.
Durable Construction: Built with high-quality components, including HIWIN guide rails, TBI lead screws, and AIRTAC pneumatic accessories, ensuring long-lasting performance.
Broad Application Range: Handles a wide variety of terminals (horizontal, vertical, and flag) and wires (AWG16 to AWG28), offering exceptional versatility.
Impressive Production Rates: Achieves outstanding production speeds, including:
2500 pcs/hour for three-terminal crimping
3800 pcs/hour for double wire equal crimping
4200 pcs/hour for single wire both-ends crimping
4500 pcs/hour for single-end crimping
Customizable Crimping Force: Offers a standard crimping force of 2.0 tons with the ability to be customized for specific needs.
Enhanced Safety and Reliability: Includes integrated detection systems for wire presence, knots, crimped terminals, and air pressure, ensuring secure and reliable operation.
Technical Specifications:

Model No.: CM-N03
Name: Fully Automatic Double Wires Three Terminals Crimping Machine
Machine Function: Wire cutting, stripping (both-ends & single-end half), single/double wire crimping (various configurations)
Dimension (LxWxH): 1000 x 750 x 1650 mm
Net Weight: 480 Kg
Display: Color Touch LCD
Operation Method: Automatic and Manual
Cutter Adjust Method: Electric
Cutter Material: High-Speed Steel
Pneumatic Accessory: Original AIRTAC
Lead Screw Guide Rail: Taiwan HIWIN Guide Rail, TBI Lead Screw
Wire Cutting Range: 50-9999 mm (minimum limited by crimping mold)
Cutting Accuracy: +/- 0.3mm (for lengths < 100mm) or +/- 0.5mm (for lengths > 100mm)
Stripping Length:
Front: 1.00-8.00 mm (Half: 2.00-8.00 mm)
Tail: 1.00-8.00 mm (Half: 2.00-6.00 mm)
Suitable Terminals: Horizontal, Vertical, Flag
Suitable Wire Size: AWG16 to AWG28
Production Rates (reference: AWG28-AWG16, 120mm cutting length):
Three-Terminal Crimping: 2500 pcs/hour
Double Wire Equal Crimping: 3800 pcs/hour
Single Wire Both-Ends Crimping: 4200 pcs/hour
Single-End Crimping: 4500 pcs/hour
Terminal Crimping Force: 2.0 Tons (standard, customizable)
Air Pressure: 5-6 kg/cm2 (clean and dry air required)
Power: AC220V 2.5 KW
Detection Devices: Wire presence, knot detection, crimped terminal detection, air pressure detection
**The CM-N03 Fully Automatic Double Wires Three Terminals Crimping Machine is a perfect solution for businesses seeking to revolutionize their wire processing workflows. Its exceptional automation, precision, efficiency, and user-friendliness make it a valuable asset for high-volume production environments
