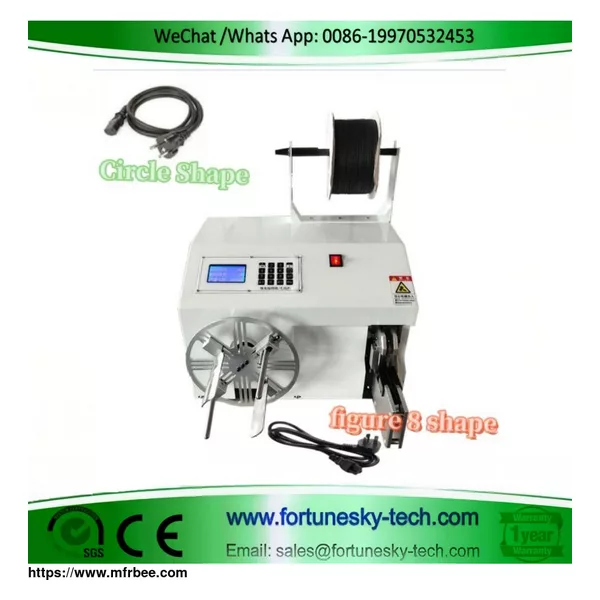

Wire Coiling and Twist Tie Machine

Introducing the All-in-One Wire Coiling and Twist Tie Machine: The Epitome of Efficiency in Cable Bundling

The HWN-Series Wire Coiling and Twist Tie Machine revolutionizes your wire bundling experience with integrated coiling, cable tie application, and automatic cutting and twisting functionalities.

Key Features:

Precision Coiling with Stepper Motors: Experience exceptional control over the coiling process thanks to the machine's precision stepper motors.

User-Friendly PLC Touch Screen Control: The intuitive PLC touch screen interface allows for effortless cable tie length control, automatic cutting, and twisting adjustments.

Adjustable Winding Speed and Cycles: Tailor the winding speed and cycle parameters to match your specific cable bundling requirements.

Versatile Wire Compatibility: This all-in-one machine is suitable for processing various transmission wires, including AC/DC power cords, USB data cables, video cables, HDMI cables, and more.

Streamlined Operation:

Simply load the cable and secure it at the designated starting point.

Set the desired cable tie length, winding speed, and cycle parameters using the user-friendly touch screen interface.

Initiate the process. The machine will automatically coil the cable, apply the cable tie at the predefined length, cut the tie, and twist it securely for a clean and professional finish.

HWN-Series Model Variations:

The HWN-Series comes in three models to accommodate varying cable tie length and bundling diameter requirements.

HWN-18-45: Ideal for cable tie lengths of 75-140mm and bundle diameters of 18-45mm.

HWN40-80: Perfect for cable tie lengths of 200-300mm and bundle diameters of 40-80mm.

HWN-530: Suitable for cable tie lengths of 65-130mm and bundle diameters of 5-30mm.

Technical Specifications:

Model No. (reference): HWN-Series (HWN-18-45, HWN40-80, HWN-530)

Bundle Diameter:

HWN-18-45: 18-45 mm

HWN40-80: 40-80 mm

HWN-530: 5-30 mm

Cable Tie Length:

HWN-18-45: 75-140 mm

HWN40-80: 200-300 mm

HWN-530: 65-130 mm

Cable Tie Speed: 0.6 seconds/tie (all models)

Voltage: AC220V / 60Hz (all models)

Power:

HWN-18-45 & HWN40-80: < 220W

HWN-530: 25 Kg

Weight:

HWN-18-45: 42 Kg

HWN40-80: 50 Kg

HWN-530: 440 x 610 x 420 mm (HWN-530)

The HWN-Series Wire Coiling and Twist Tie Machine is a perfect solution for businesses seeking to streamline their cable bundling operations. Its precision engineering, user-friendly interface, adjustable settings, and versatility make it a valuable asset for any production line.
