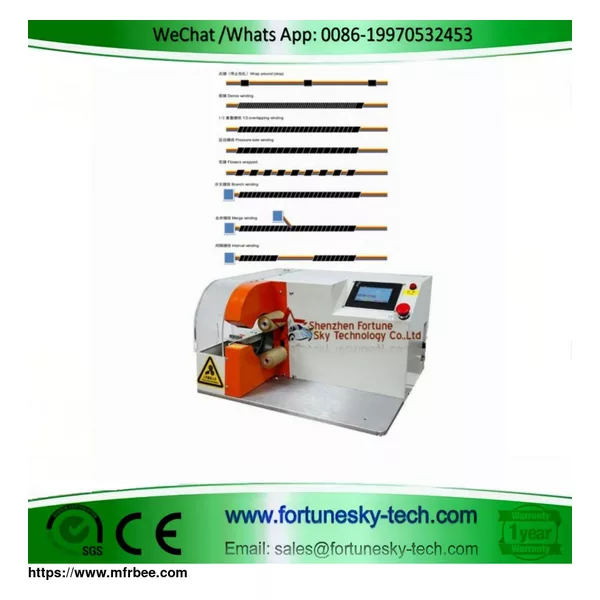

Automotive Wire Harness Tape Wrapping Machine

Introducing the Revolutionary Rotary Wire Harness Tape Wrapping Machine: Achieve Faster, Smoother, and More Reliable Wire Harness Wrapping

Upgrade your wire harness processing with the innovative Rotary Wire Harness Tape Wrapping Machine. This state-of-the-art machine tackles various winding modes with exceptional speed and reliability, surpassing the limitations of older models.

Key Advantages:

Enhanced Versatility: The machine handles diverse winding modes, including spot, full, pattern, and multi-segment winding, providing flexibility for various applications.

Unmatched Performance: Experience exceptional speed and reliability compared to older models, ensuring efficient and consistent production of wire harnesses.

Improved Stability and Noise Reduction: Say goodbye to the issues of unstable braking, wear and tear, and loud noise that plagued older machines. This innovative design prioritizes smooth operation and a quieter work environment.

Precise Control: The user-friendly touch screen interface and foot switch control offer precise command over the wrapping process.

Broad Application Range: Ideal for the automotive, motorcycle, and electronics industries, this machine is perfect for high-quality peripheral tape wrapping of wire harnesses.

Technical Specifications:

Operating Mode: Touch Screen and Foot Switch

Working Modes: Full Winding, Point Winding, Multi-Segment Winding, Fixed-Point Winding

Power Supply: AC210V-AC240V

Air Pressure: Minimum 4 MPa (>= 4P)

Winding Length: Unlimited

Winding Combination Wire Diameter: 3mm - 40mm

Tape Specifications:

Inner Diameter: 38 mm

Outer Diameter: Up to 140 mm (<= 140mm)

Width: Up to 20 mm (<= 20MM)

Customization Available for Different Tape Sizes

Tape Types: PVC, Velvet, Acetate Cloth (without insulation paper), etc.

Operating Temperature: 0-45°C

Operating Humidity: 10-90% RH (Non-Condensing)

Cooling Method: Natural Wind

Maximum Winding Frequency: 12 Rotations per Second (12R/S)

The Rotary Wire Harness Tape Wrapping Machine offers a perfect solution for businesses seeking to elevate their wire harness production processes. Its versatility, exceptional performance, enhanced stability, precise control, and broad application range make it a valuable asset for any production line demanding high-quality and efficient wire harness wrapping.
