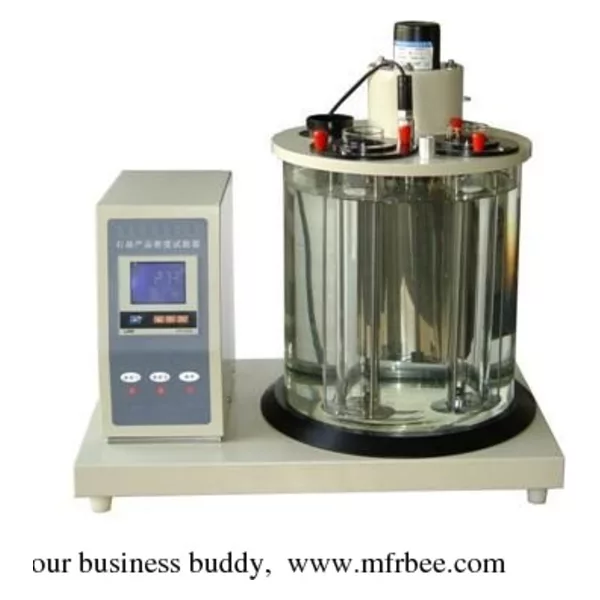

GD-1884 Digital Display Oil Hydrometer

GD-1884 Digital Display Oil Hydrometer

Brief Introduction:

• The instrument is designed and made as per the national standard of People's Republic of China GB/T1884 Test Methods for Density of Petroleum Oils and Liquid Petroleum Products (Density Meter Method).
• It is suitable to determine the density of crude petroleum and liquid petroleum products.

Main technical specifications and parameters:
1. Power supply: AC 220V±10%, 50 Hz
2. Bath cubage: dia.300 mm×340 mm
3. Test tube: 500 ml,1000ml(1000ml need to be customized)
4. Heating power: 700 W, 1000 W
5. Temperature controller:
(1) Temperature controlling range: 0 °C~100 °C
(2) Temperature controlling accuracy: ±0.2 °C
(3) Temperature sensor: Industrial platinum resistance; its scale number is Pt100
6. Thermometer: It is a total immersed mercury thermometer having scale division of 0.2 °C
7. Ambient temperature: -10 °C~+40 °C, Temperature fluctuation ≤ 2 °C
8. Relative humidity: ≤85%
