Electric Medical Hospital Dialysis Chair Blood Donation

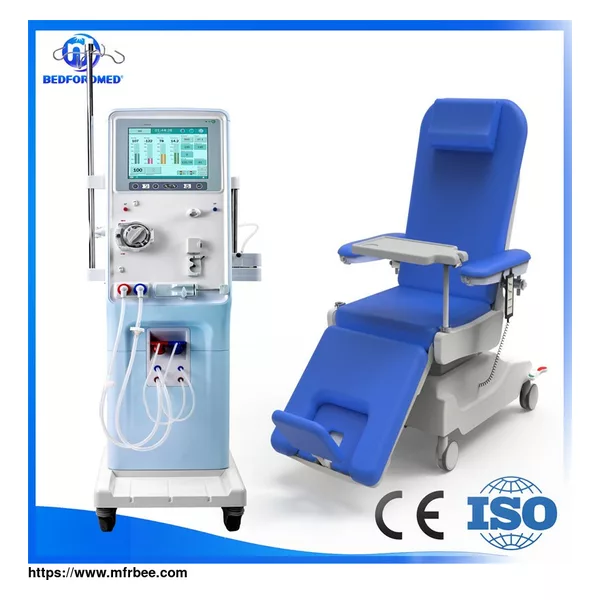

​Medical Instrument Dialysis Machine Blood Donation Chair Electric Dialysis Chair ME410
Multi-position adjustment possibilities by 4 DEWALL motors offer patient comfort and reduction in staff work load

1. Product philosophy

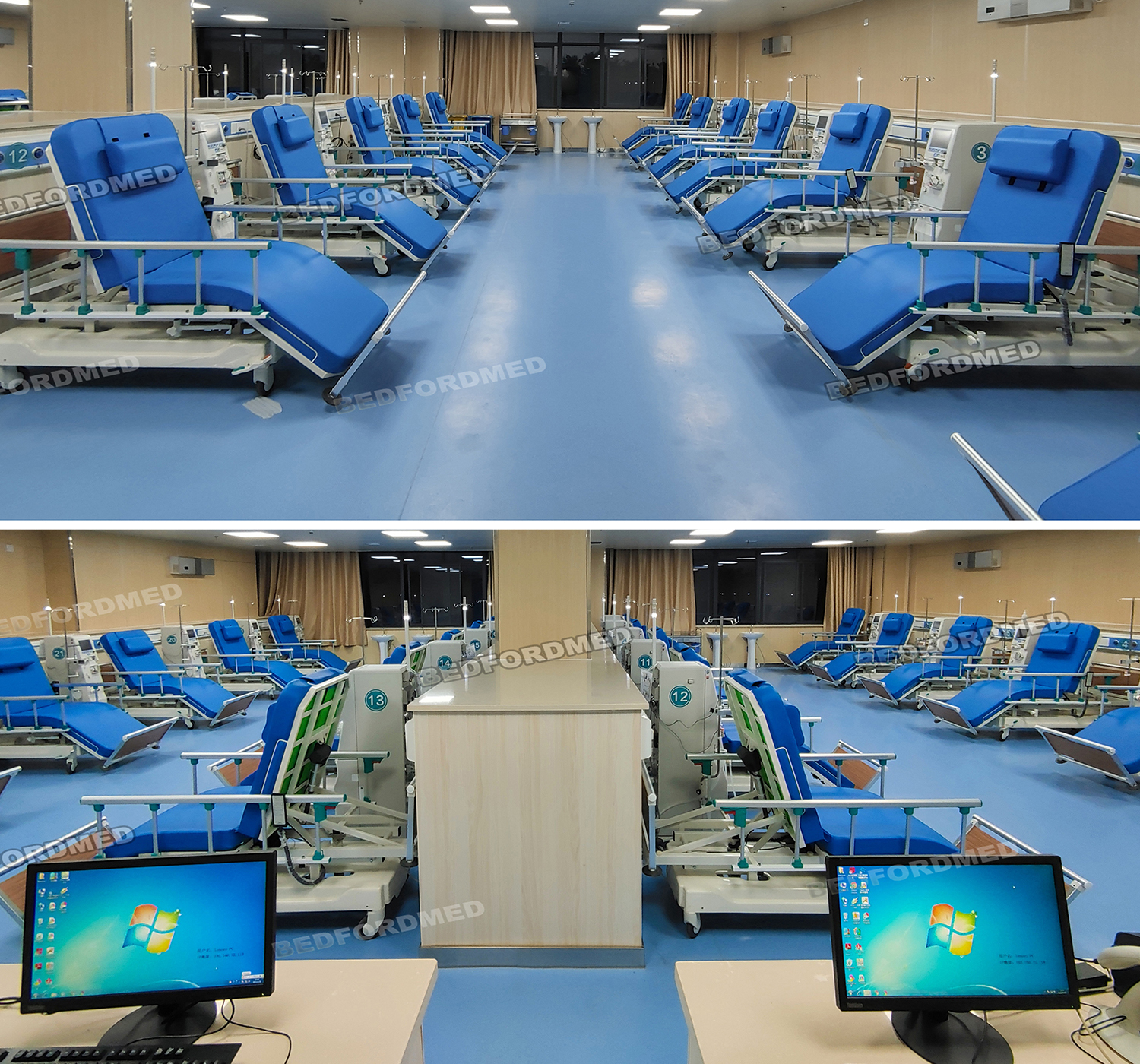

Design and comfort are the main attributes of the Passion multifunctional chair. That is why the chair will be applied in health care, in social areas and other services. It is suitable for dialysis departments, examination rooms, treatment rooms.
It offers healthy sitting which is why it is ideal for treatments where clients spend more time in one position.
The comfort able loading area and ergonomic armrests especially provide maximum comfort during the treatment.
2.Saving space
Overall chair dimension: L 2090 mm x W 700 mm x H 620~850 mm. Smaller overall chair dimensions to save up to 40% of floor space than a hospital bed and therefore allows better and more functional use of space.
3. Height Adjustment
The lowest 620 mm & the highest 850 mm height adjustment gives added assurance to patients accessing Chair.

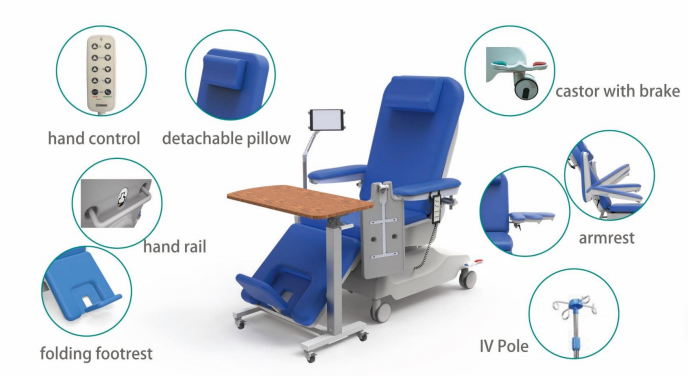

4. Multi-Functional Armrest
Multifunctional armrest provide in vertical adjustment from 0°~90°, and horizontal adjustment from 0°~45° to make patient comfort during procedures.
5. Motorized Footrest
The footrest can be adjusted by hand control according to the height of each patient.

Specification

Model	ME-410series
Overall Length	2090 mm
Seat Width	600 mm (including armrest 900mm)
Height Adjustment	620 ~ 850 mm±100mm
Backrest adjustment	-12° ~ 80°
Legrest adjustment	-80° ~ 12°
Backrest Adjustment	-12°~75°
Legrest Adjustment	-80°~12°
Trendelenburg Position	-12°
Safe maximum load	240 KG
Castor	4x Φ10cm swivel castors with separate brakes
Pillow	390*220*100mm
Cushion	Sponge+PU leather
Motors	4 Dewall motors
Frame	Q235 Steel
Power Supply	Ac110~240V 50/60Hz
Plug	as required (hospital grade)
Standard Accessories	Table , I.V.pole
Color Optional	Green, Blue, Brown, Ivory
Working environment	Temperature: -20ºC ~ 60ºC, Relative humidity: 10% ~ 85%
