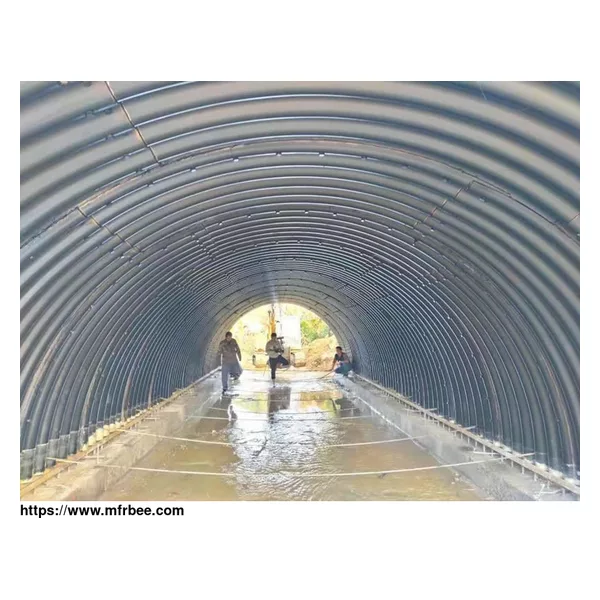

Bridge Structure Plate Arch Culvert

Country: China (Mainland)
Business Type: Manufacturer
Market: 非洲,Americas,Asia,Emerging Markets
Founded Year: 2024
Address: 161# Ronghua Street, Taocheng District, Hengshui, Hebei, China
Contact: Wang Yumeng

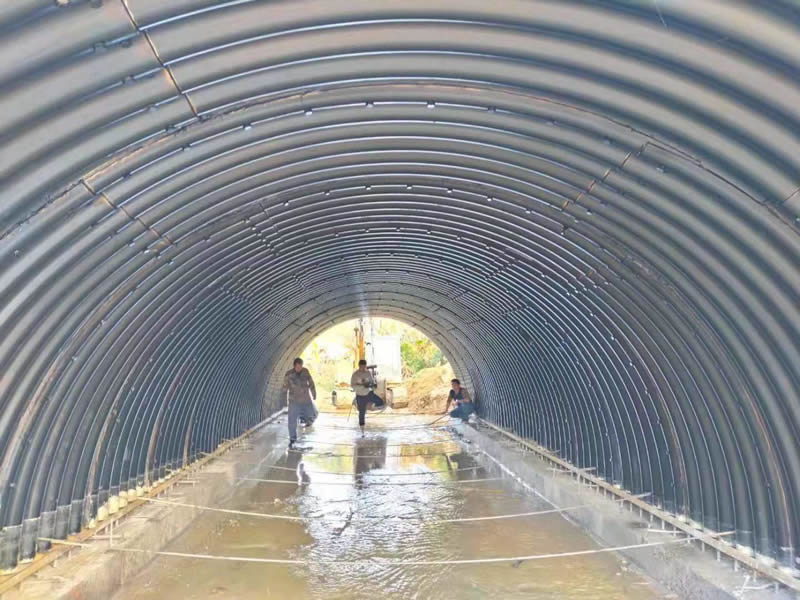

Bridge Structure Arch Culverts offer a robust and reliable solution for infrastructure projects, combining high-strength materials and advanced design to provide durable, long-lasting drainage systems under bridges and roadways. These culverts are designed to handle significant load-bearing requirements and can adapt to various environmental conditions, ensuring optimal performance across different applications.

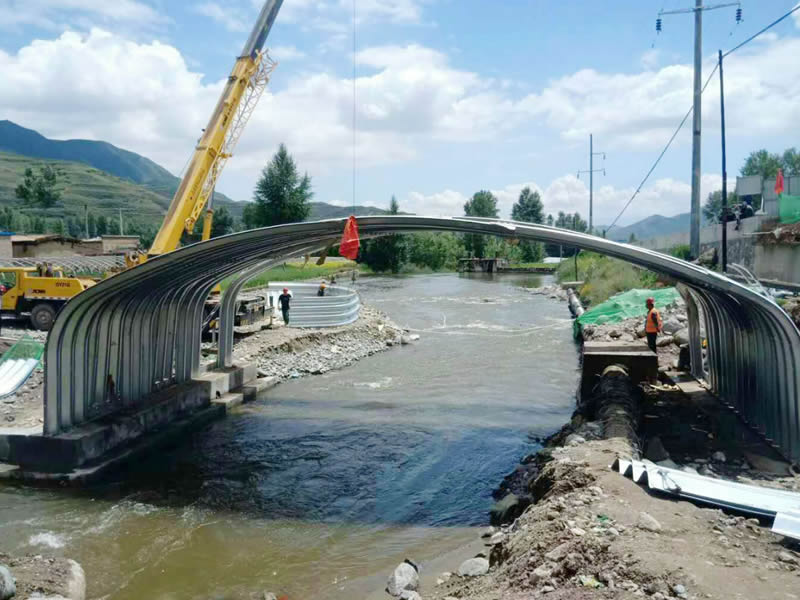

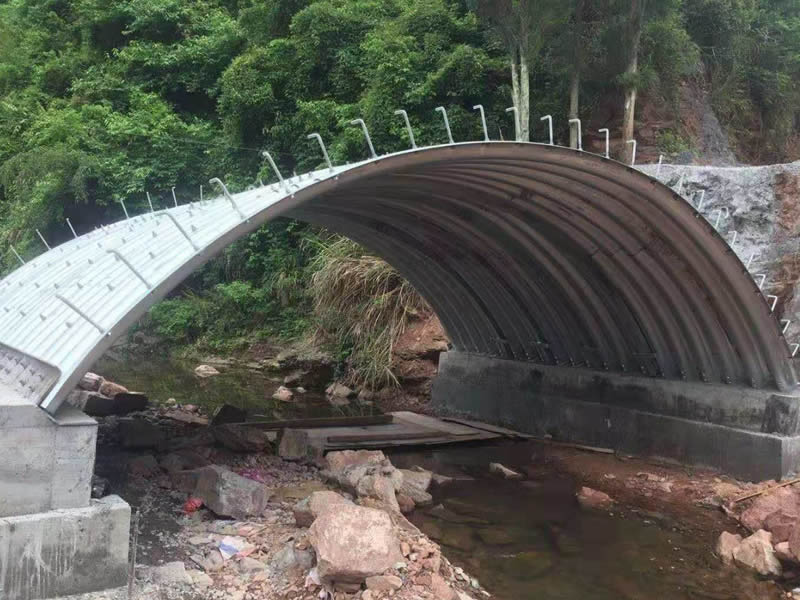

Medium-Sized Bridge and Culvert Structure (Reinforced by Built-In Steel Frame)

The medium-sized bridge and culvert structure features an outer layer made from corrugated steel plates. The plates are carefully selected for their durability, and their waveform design enhances the strength of the structure. For added support, section steel or I-beams are placed within each ring of corrugated plates to form a stable inner support system.

To maintain the integrity of the structure, transverse support ribs are positioned between the steel sections, connecting them in series. This ensures the entire structure works cohesively, distributing the load evenly. The corrugated steel plates are securely connected to the reinforced concrete foundation through bottom channel steel, which further strengthens the connection between the two components.
