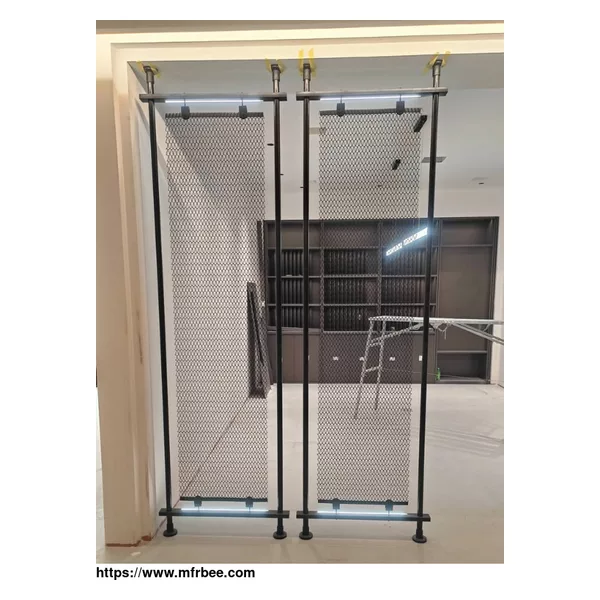

Elevate your architectural designs with our Spiral Conveyor Wire Mesh Curtain. Crafted from durable stainless steel, aluminum alloy, or carbon steel, this decorative mesh offers unique aesthetic appeal for building facades, partitions, and sunshades. Available in various finishes and colors, its flexible, tough structure ensures easy installation and long-lasting performance. Perfect for modern designs in stadiums, airports, and office buildings.
Minimum Order
1
Packaging
N/A
Delivery
15 Days
Specifications
The Spiral Conveyor Wire Mesh Curtain, also known as decorative spiral mesh belt, architectural conveyor belt, or conveyor belt mesh, is a premium decorative wire mesh primarily utilized for building facades. Crafted from high-quality materials such as stainless steel, aluminum alloy, or carbon steel, this mesh combines spiral and cross wires to create a unique and visually appealing design.
Specifications
Material Options: Stainless steel (304, 316, 304L, 316L), carbon steel, and more.
Surface Treatment: Available in spray-paint, titanium plating, or original metallic finishes.
Color Choices: Metallic silver, gold, brass, or custom spray-painted colors.
Wire Type: Round or flat wire options.
Wire Diameter: 1.2 mm – 10 mm.
Wire Pitch: 3 mm – 38 mm.
Rod Type: Straight or bent rods for flexible design.
Rod Diameter: 1.3 mm – 5 mm.
Rod Pitch: 13 mm – 64.5 mm.
Specifications of balanced weave conveyor belt
Spiral wire pitch
Cross rod pitch
Spiral wire diameter
Cross wire diameter
4mm
4mm
0.9mm – 1.2mm
1.2mm – 1.6mm
5mm
6.4mm
0.9mm – 1.2mm
1.2mm – 1.6mm
5mm
5mm
0.9mm – 1.6mm
1.2mm – 1.6mm
6mm
6mm
0.9mm – 1.6mm
1.2mm – 1.6mm
6mm
8mm
0.9mm – 1.2mm
1.2mm – 1.6mm
6mm
10mm
0.9mm – 1.6mm
1.2mm – 1.6mm
8mm
12mm
1.2mm – 2.0mm
1.2mm – 2.5mm
8mm
13mm
1.2mm – 2.0mm
1.2mm – 2.5mm
8mm
15mm
1.2mm – 2.0mm
1.2mm – 2.5mm
11mm
15mm
1.2mm – 2.0mm
1.2mm – 2.5mm
11mm
20mm
1.6mm – 3.0mm
1.6mm – 3.0mm
11mm
25mm
1.6mm – 3.0mm
1.6mm – 3.0mm
11mm
27mm
1.6mm – 3.0mm
1.6mm – 3.0mm
15mm
20mm
1.6mm – 3.0mm
1.6mm – 3.0mm
15mm
25mm
1.6mm – 3.0mm
1.6mm – 3.0mm
22mm
23mm
1.6mm – 3.0mm
1.6mm – 3.0mm
22mm
33mm
1.6mm – 3.0mm
2.0mm – 4.0mm
Features:
Unique Aesthetic Appeal: The intricate spiral and cross wire combination gives the mesh a distinctive triangular pattern, enhancing the visual interest of any structure.
Durable Construction: Made from robust materials like stainless steel, aluminum alloy, and carbon steel, ensuring longevity and resistance to harsh environmental conditions.
Versatile Applications: Ideal for large-scale decorations on stadiums, theaters, markets, airports, and office buildings. It also serves as an effective sunshade, helping to regulate building temperature and reduce energy costs.
Reflective Quality: Under sunlight, the metallic texture of the spiral mesh reflects light beautifully, adding a soft brilliance to architectural lighting designs.
Flexible Usage: Suitable for both exterior and interior applications, including wall facades, interior partitions, curtain walls, ceilings, railings, and balustrades.
Enhanced Protection: Provides an additional layer of protection for buildings while contributing to their aesthetic value.
Modern Design: The contemporary texture of the spiral mesh makes it a popular choice among designers for creating sleek and modern architectural elements.
Soft and Tough Structure: Compared to crimped wire mesh, spiral mesh offers greater flexibility and toughness, making it easier to install while maintaining structural integrity.
