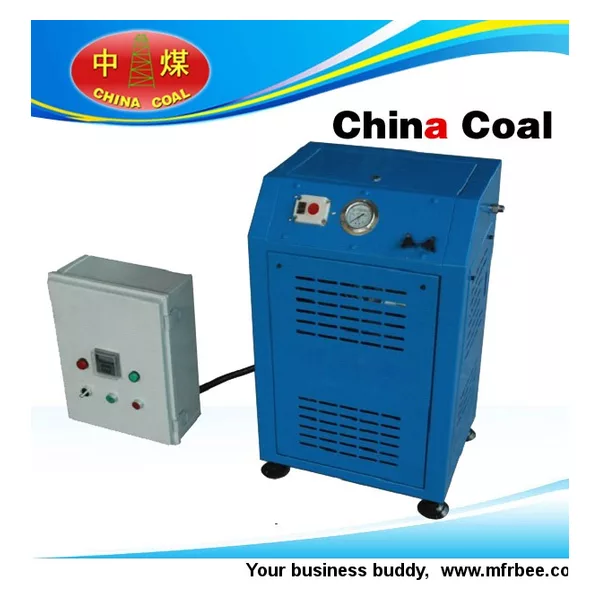

cng compressor
Product Quick Detail
- Place Of Origin
- Shandong China
- Packaging
- Container
- Delivery
- 15 Days
Specifications
Product Introduction
1.CNG compessor of low specific power
2.capacity of 2Nm3/h
3.oil-free lubrication
4.energy save, wide suction rage
Main Parameter
| model | MF5 CNG |
| Charging rate | 5.0 Nm3/h,3.0cfm |
| Filling time | tank 60L(0-200bar) 2.5hours |
| Working pressure | 200bar/3000psi |
| Driven by | electric motor(explosion proof EEX) |
| Power | 2.2kw/3hp,380v/50hz,single/three phase |
| Dimension | 600*600*1040MM |
| Weight | 180kg |
| Noise | 60db(A) |
