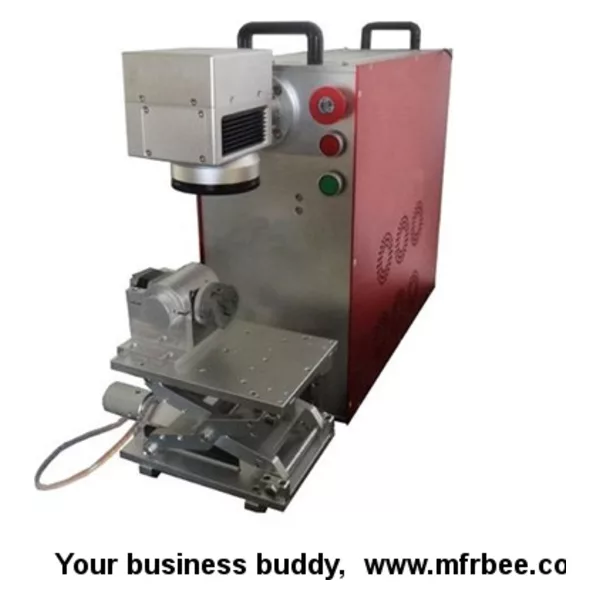

Fiber Laser Marking for Metal
Product Quick Detail
- Place Of Origin
- Shandong China
- Packaging
- Container
- Delivery
- 15 Days
Specifications
Features:
1. Stable structure, little shock during work.
2. Quick scriber speed, finish job in seconds.
3. High precision, repetition as tiny as 0.2mm
4. Simple and convenient operation. Easy to learn and handle.
5. Robust performance even during continuously work for 24 hours every day.
After-service:1. All parts guarantee one year, consumptions for 6 months
2. Technic support on weekday
3. Free tutorial
Technical parameter
| Working Size | 100*100mm (optional) |
| Laser Power | 10w/12w/20w |
| Min Engraving Letter | 0.3mm |
| Working Voltage | 220V±10%/50HZ |
| Working voltage | 220V±10%/50HZ |
| Net Weight | 40KG |
| Packing size | 400*450*700(mm) |
| Marking line | min 50µm |
| Marking Depth | 0.01mm ~ 0.35mm |
| Marking Characters | 300 letters/s |
| Impact frequency | 20KHZ----60KHZ |
| Power Supply | 500W |
| Temperature | 15°C--35°C |
