High Current Test System

Current: 4000A, 5000A, 6000A, 7000A or above

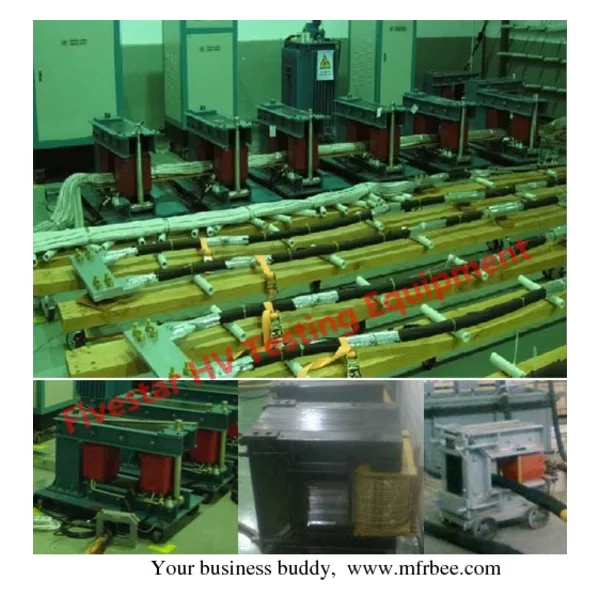

Heat cycling test set is designed to raise and control the temperature of the conduct simulating high current load in electric circuit. The high current is generated by the ring core heating transformer. And temperature measuring is achieved by Rogowski Coil.

The whole system is consisted by heating circuit and measuring circuit. Temperature and current measurement are available in our system.

In order to reach high current or voltage, our solution is modules connection. With several modules series or parallel, we can get high voltage or current to meet the different requirement on testing.
